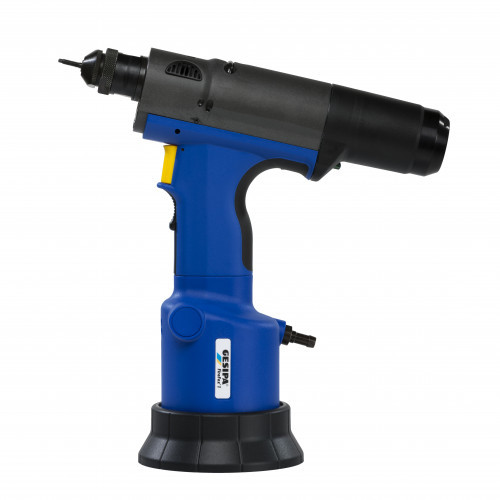

Ph 2 (Hydro-pneumatic Blind Rivet Setting Tool)

Working range
Blind rivets from 3 up to 5 mm diameter
all materials and blind rivets with 2.4mm diameter
with small jaws (page 133)
Not suitable for stainless steel CAP(R) blind rivets.
Technical data
Weight: 1.3 kg
Operating air pressure: 6 bar
Air hose connection: 6 mm diameter (1/4a a )
Air consumption: 1.2-1.8 ltr. per rivet
(0,3 ltr. compr. air)
Traction power: 7.375 N at 5 bar
Stroke: 15 mm
Nosepieces/accessories
Nosepieces:
16/24, 16/27, 16/29, 16/32 and 16/36
1 set of jaws, 1 spent mandrel bottle,
1 wrench each of MSU and MSZ,
Maintenance instructions with spare parts list
Features
- Hydraulic head made of aluminium with
wear-proof cylinder surface
- Pneumatic cylinder made of die cast aluminium
- Pistons: Steel hardened and chrome-plated -
smooth operation and wear-proof
- Compact seals are wear-proof for a long service life
- Fast venting valve for fast return and high working
sequence
- Low-noise pneumatic switching
- Simple, low-interruption valve design
- Hydraulic head can be adjusted by 360deg
- Favourable centre of gravity and handle design
for fatigue-free handling
