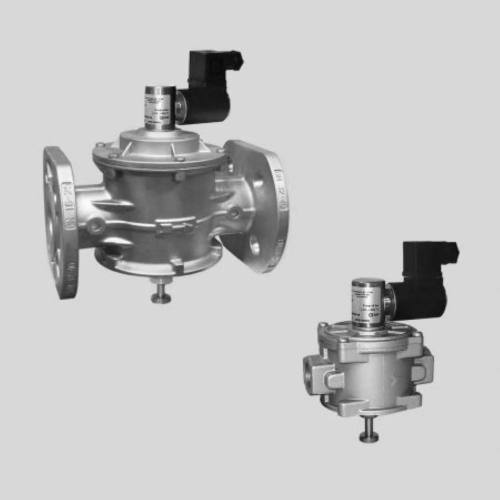

Manual Reset Gas Solenoid Valves

p { margin-bottom: 0.21cm; } Manual Reset Gas Solenoid Valves  Fast Closing Safety Feature of Solenoid Valves enhanced with Manual Reset System. Ideal for Critical and Semi-Critical Safety Interlock applications which required Manual Intervention when a fault condition occurs. Ideal to use as Safety Shut Off device with Gas Detectors, Over Limit Thermostat, Pressure Switches and during Plant Blackout. Simply powering up the Solenoid Coil does not open the valve. Opening of valve is possible only by hand. High Pressure versions available for Max. 6 Bar Pressure rating . Sizes available upto DN300. Available with Closed Positions Feedback Switch. M16/RMO N.C./ N.A. - M16/RM N.C. / N.A. M14/RM N.C./ N.A. Manual Opening Electrical Closing type Safety Shut Off Solenoid Valves Available as both Normally Open (NO) and Normally Closed Version Ideal for Operating with Critical Safety Interlocks. Sizes : DN15 to DN300 End Connections: DN15 to DN50 : Threaded as per EN10226 / Rotating Flanges DN65 to DN300 : Flanged as per ISO7005 (PN16) Coil Voltages : 12 VDC / 24 VDC or 12 / 24 /110 / 230 VAC Versions M16/RMO N.C. / N.A. EEX - M16/RM N.C. / N.A. EEX have Ex-Proof Coils Versions M16/RMO NA/NC can be used as both Normally Open and Closed type. Body : Die Cast Aluminum Maximum Working Pressure : 0.5 Bar or 6 Bar versions available. Suitable for Natural Gas, LPG, Propane and other dry and non aggressive gases of the 3 families. As per EN437:2003 Coil Protection : IP65 Closing time Less than 1 sec Closed Position Indication Switch available as Option. Versions available for Biogas and other select Gas Mixtures Environment temperature rating : -20 to +60oC   Product conformance : EC certifi ed according to EN 161 According to the 90/396/EEC Directive (Gas Directive) 6 bar versions According to the 97/23/EC Directive (PED Directive) According to the 94/9/EC Directive (ATEX Directive) According to the 2004/108/EC Directive (Electromagnetic Compatibility) According to the 2006/95/EC Directive (Low Voltage)
