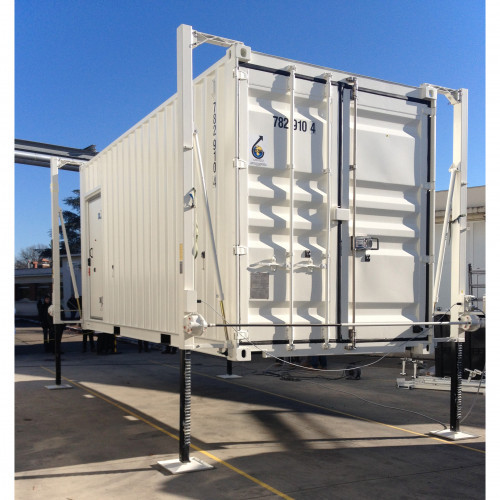

Lifting Device - 1889.5

Specialised lifting systems for mobile devices Depending on the application of the supports, the following technical parameters can be achieved: Container carrying capacity from 2.5 t to 20 t, Lifting heights from 500 mm to 1,750 mm (Optional maximum: 2,000 mm), Attachment to ISO corners and Position Control. Innovative inclinometer-based position control is a special characteristic of our lifting systems and allows lifting and lowering action parallel to the ground during loading operations in uneven terrain, automatic initial inclination registration, inclination offset to zero degrees, control precision: +/- 0.2 degrees, safety shutdown when the inclination exceeds 3.5 degrees (or more, if required). Individual support control unit available as optional attachment. In addition to our standard products, we offer customized designs: Non-standard lifting heights, modified basic carrying capacity, specially adapted mounting and interlocking systems, special base plates, holding fixtures for easy lifting support transportation, tailor-made solutions with regard to functionality and intended uses, advice, assistance and support to customers implementing specific projects as well as special colours and paint coats. Furthermore our products are accompanied by expertise and therefore offer appropriate performance in tests, trials and provision of samples. Our products are TUeV tested. Each product is subjected to functional and load tests performed on our own test equipment.
