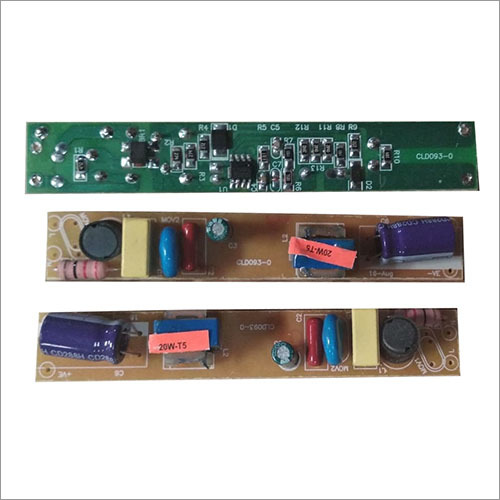

Led Driver By Skylite Fixtures Corporation

Following are the Main Technical Parameters of LED Driver :- Description Input Voltage : 140 - 300Vac Frequency : 47 - 63Hz Power factor : >0.9 THD : <20% Input High Voltage Cut-off : >300V, with Auto recovery Ripple & Noise level : <2% Line & Load Regulation : A 5% Surge Protection : YES Output over voltage protection : Constant Current provision Output Short circuit Protection : YES , With auto recovery Thermal Shutdown : YES , With auto recovery Efficiency : ~80% Operating Ambient Temperature : (-10 to +50A C) Input/Output Protection Type : SELV Galvanic Insulation Between Primary and Secondary Side : 1.5KV Insulation Resistance B/w shorted I/p and O/p terminal : 10ME at 500V DC Over Load Protection : CC -CV Mode Dimming : NA Protection Class : Class I IP Protection : IP-10 Suitable for : Indoor Geometry (LXWXH)mm* : 175X50X40 Input Terminal : 3 Core round Cable L,N,E with 200mm Length Output Terminal : 2 wire +Ve Red,-Ve Black with 200mm Length Weight(Kg) : 0.21 Application : Ceiling Light,street light,flood light,Outdoor
