Jib Crane

JIB cranes solutions are versatile, efficient and cost-effective to transport materials within the individual workstation, to transport materials from the work area to work area or to serve as lifting devices under overhead cranes assistance.
Wall Mounted Tye
(Tension braced pocket jacks)
Capacity of 250 kg to 2000 kg
A standard period of up to 20 feet
180 degree rotation
The most economical style of cranes
I-beam uses standard.
Allow maximum use of the work area, including work in the vicinity of the existing structure.
Cantilever Full Pocket crane:
Capacity of 250 kg to 2 tons
A standard period of up to 20 feet
180 degree rotation
Provides greater potential under boom clearance because it can be installed closer to the ceiling than the other wall cranes.
Allow maximum use of the work area, including work in the vicinity of the existing structure.

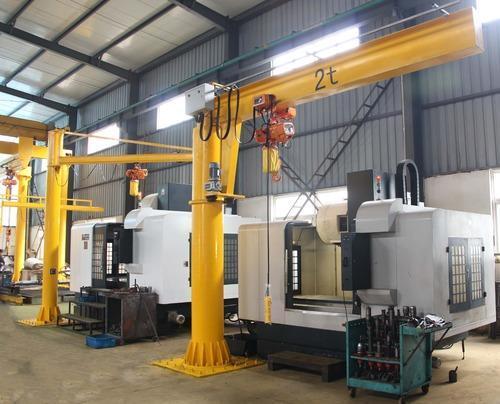

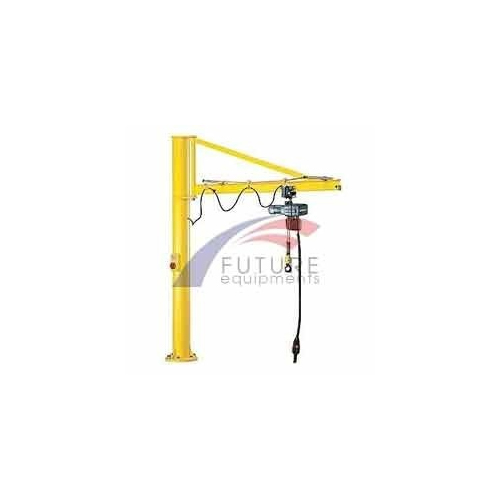

Self-substrate-based Mounted type (Free Standing jacks, Pocket)
Capacity of 250 kg to 5 tons
A standard period of up to 20 feet
360 degree rotation
Designed for a permanent concrete base
Is secured to the base plates Assembly through the anchor bolts to prescribed mainly of reinforced concrete, with a number of anchor bolts varying with leverage,
The tube is designed or column to give maximum strength and minimum deviation of resistance to bending, twisting and crushing
Carriyin Top uses a tapered roller bearing provided with grease fitting for proper lubrication.
Industries We Serve :
Foundries
Steel mills
Fertilizer
