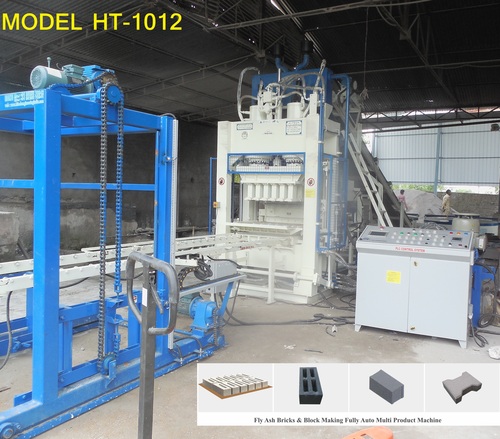

Fully Automatic Vibro Compacting Machine - 41 HP 400 Liter Oil Capacity | High Production Capacity with Advanced Hi-Tech Vibro System Auto PLC Control Vibratory and Pallet Stacking Features Yellow

1.Total Power Require: 41 HP 20.75 KW 3 Phases.
2.Oil Tank Capacity: 400 Liter Standard Company Grade 68 No. Hydraulic Oil.
3.Production Capacity per Shift 8 Hour: Bricks- 12000 to 12500 Solid or Hollow Block- 2500 to 3000 Plain Paver- 9000 to 10000.
4.Bricks per Stock: 8 Bricks 230 X 110 X 75mm or as per requirement.
5.Plain Paver Block per Stock: 6 Block or depend on design (Design as per requirement).
6.Solid & Hollow Block per Stock: 2 or 3 Block or depend on size (Size As per requirement).
7.Hi-Tech Vibro System: 10 HP.
8.Varam System: 1 HP.
9.Pallet Forwarding System: 1 HP
10.System Vibro Oil Chiller Pallet Auto Cut Varam System Magnetic System Special Oil Filter Feeding & Mould Gap Adjustable Plate etca
11.Pan Mixer: 6 Ft. 600 Kg Capacity Heavy Duty Roller & Blade) Powerful Worm Reduction Gear Box Transmission Unit.
12.Conveyor: Ft 30 X Width 18 Inch X Thickness 8mm (Dunlop or MRF Belt)
13.Auto PLC: Fully Auto PLC operating all system & Warranted safety system with HMI Display.
14.Auto Pallet Stacker: (Gear Type) For Shifting & Arranging Green Bricks Pallet from Press to pallet Truck or Stacker System (If require).
15.Note: Specifications are subject to change for improvement Engineering drawing for civil work and shed for the machine installation.
