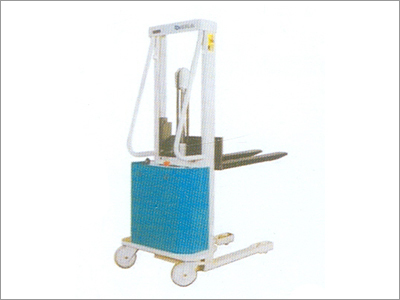

Electric Stackers Model: Actro - Esx 10/15

Electric Stacker is very versatile equipment and it is very useful for high intensity stacking and transporting with a minimum cycle time in narrow aisles and busy gangways with multishift operations.

Drive Systems: 24V 0.8KW. 1500 rpm series wound imported drive motor and transmission on integrated believed gears and closed oil both gearbox mounted on spring loaded suspension for better and constant road grip.

Speed Control: Smooth and stepless speed control achieved through advanced programmable imported transistorised electric controller, the travel speed can be programmed (upto 7.9km/hr) according to customer requirement and operator's efficiency.

Hydraulic System: 24V, 2KW, Electro-hydraulic pump motor, solonoid operated lift and lowering valve with adjustable pressure relief valve, that is factory preset to protect against overload and ISI marked with braid reinforced hoses.

Brake System: Electro-magnetic motor brake acting on drive motor, applied as parking brake.

WHEELS:
1 Polyurethane Drive wheels - f260x80mm - 1 No
2 Polyurethane Steering wheels - f150x50mm - 2 Nos
3 Polyurethane Load wheels - f82x70mm - 4 Nos.

Battery: 24V, 206 AH/5hrs rating heavy duty industrial traction battery.

Options: Hour meter, Battery, Indicator horn, Loading platform etc.
