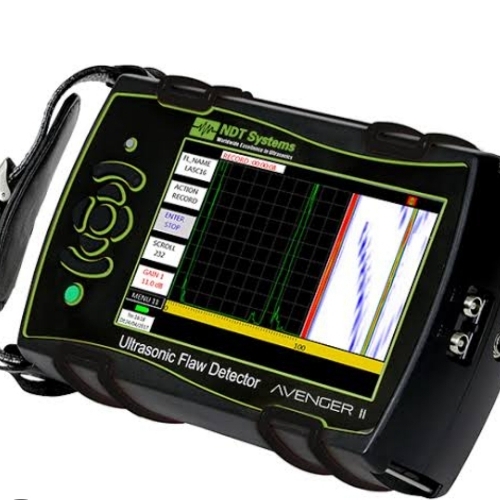

Digital Ultrasonic Flaw Detectors - Frequency Range Of 0.5-12 Mhz, Depth Range Up To 5 Meters , Rechargeable Battery With Plug-in Charger

With the endorsement of our experienced professionals, we are indulged in exporting, manufacturing and supplying an Digital Ultrasonic Flaw Detectors in Navi Mumbai, Maharashtra, India. it Serves as all the solution for various cleaning and flaw detecting purposes, this instrument, Flaw Detectors combines the highest level of performance for filed operation; it provides precise quantitative evaluations with the simplest of controls that can easily be handled. These models are powered by rechargeable batteries housed inside the main units. Moreover, a plug in battery charger permits the battery to be charges without removal from the main unit.

Models available: FD 201 B, FD 350

Technical specifications :
Frequency range0.5 MHz to 12 MHz
Vertical linearity+ 2%
Gain140 dB
Gain control80 dB in Steps of 2 dB + 6 dB stepless
Depth rangeUpto 5 mtrs. in steel
Delay3 mtrs. of steel
Ranges provided1,5,10,50,100 cms. with a multiplying factor of 5
Time base linearityBetter than 1%
PRFVariable from 1 KHz to 125 Hz interlinked with range
Display70 x 55 mm
Operating temperature40C to 60C
