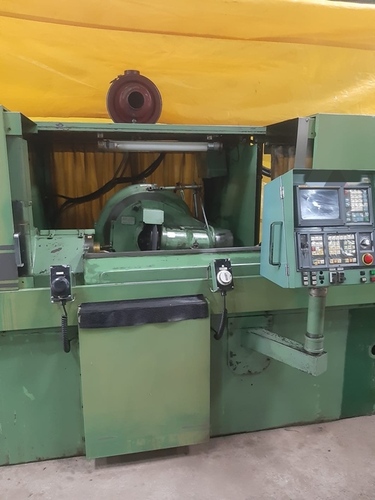

CNC Thread Grinding Machine Matrix 46

Long Life Service Cnc Thread Grinding Machine Matrix 46

Accepts only Domestic inquiries


whatsappWhatsAppGet Latest Price
Get Latest Price

Delivery Time

: 1 Days

Supply Ability

: 1 Per Day


Product Overview

Key Features

CNC Thread Grinder Matrix 46

We are a trusted Importer and Trader that offers a wide range of used Matrix 46 CNC Thread Grinding Machine
Our offered machines are used in many industrial applications. Our range of product is sternly verified on many parameters before delivering. We are offering these machines in standard specifications. We provide our range of products to our clients at economical price in the market.

Description:
Machine Type: CNC Thread Grinder
Machine Make: Matrix
Machine Model: 46

Features:
Robustness, Low Maintenance, Safe Use

Technical Specifications:
Max Dia Admitted350 mm
Max Length Between Centres1066 mm
Max Length Ground At One Setting1041 mm
ControlFANUC ON
CNC Axis4 th Axis Controlled
DressingCNC Controlled
Width Of Gap In Front Of Faceplate63.5 mm
Max Collet Capacity38 mm
Max Helix Angle, RH Or LH45 degree
Workhead And Tailstock CentresNo 4 MT
Pitch Range0.42 to 305 mm
Max Pitch Correction0.1 mm per 100 mm
Relief Variable0 - 5 mm
Number Of Workhead Speeds20
Range Of Workhead Speeds1/3 to 60 RPM
Work Return Speeds25, 4, 80 RPM or workspeed
Workhead Motor3/4 HP
Wheelhead Motor3 1/2 / 1 1/4 HP
Crushing Motor1/3 HP
Max Taper On Diameter1 in 12
Standard Grinding Wheel Size408 x 25 x 205 mm
Grinding Wheel Width Limits9.5 - 75 mm
constant of Leadscrew
5 mm Pitch (High Ratio)
20.2 mm Pitch (Low Ratio)
No Of Grinding Wheel Speeds3
Range Of Grinding Spindle Speeds850 - 1540 RPM
Internal Diameters Ground19 - 228 mm
Max Hob Dia178 mm
Max Chaser Length254 mm
Coolant Tank Capacity136 Litres
Coolant Pump (Water Rating)54 Litres / min
Nett Weight6940 Kgs




Buy used CNC Thread Grinding Machine Matrix 46 in very good working condition at a very competitive price.
