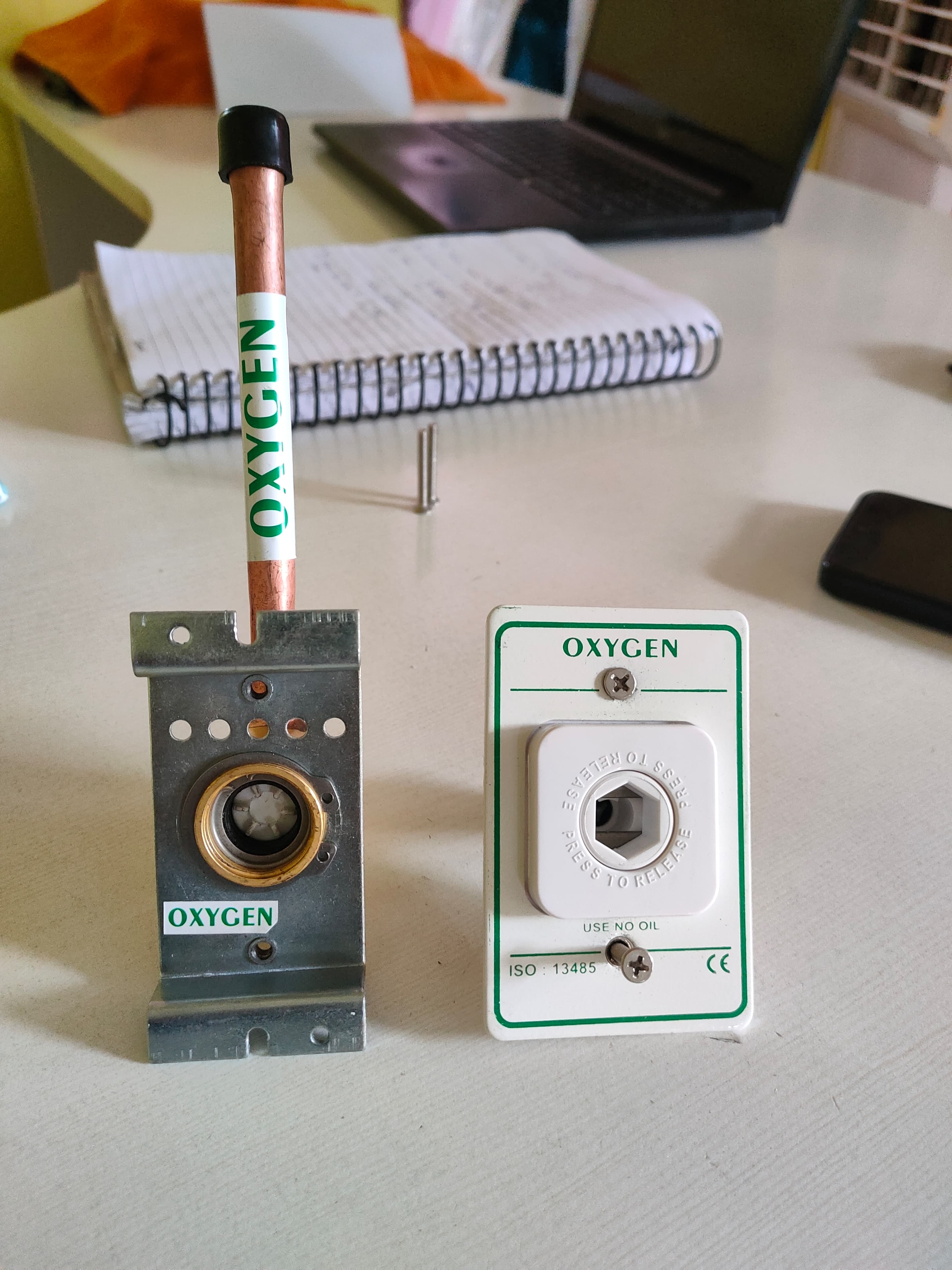

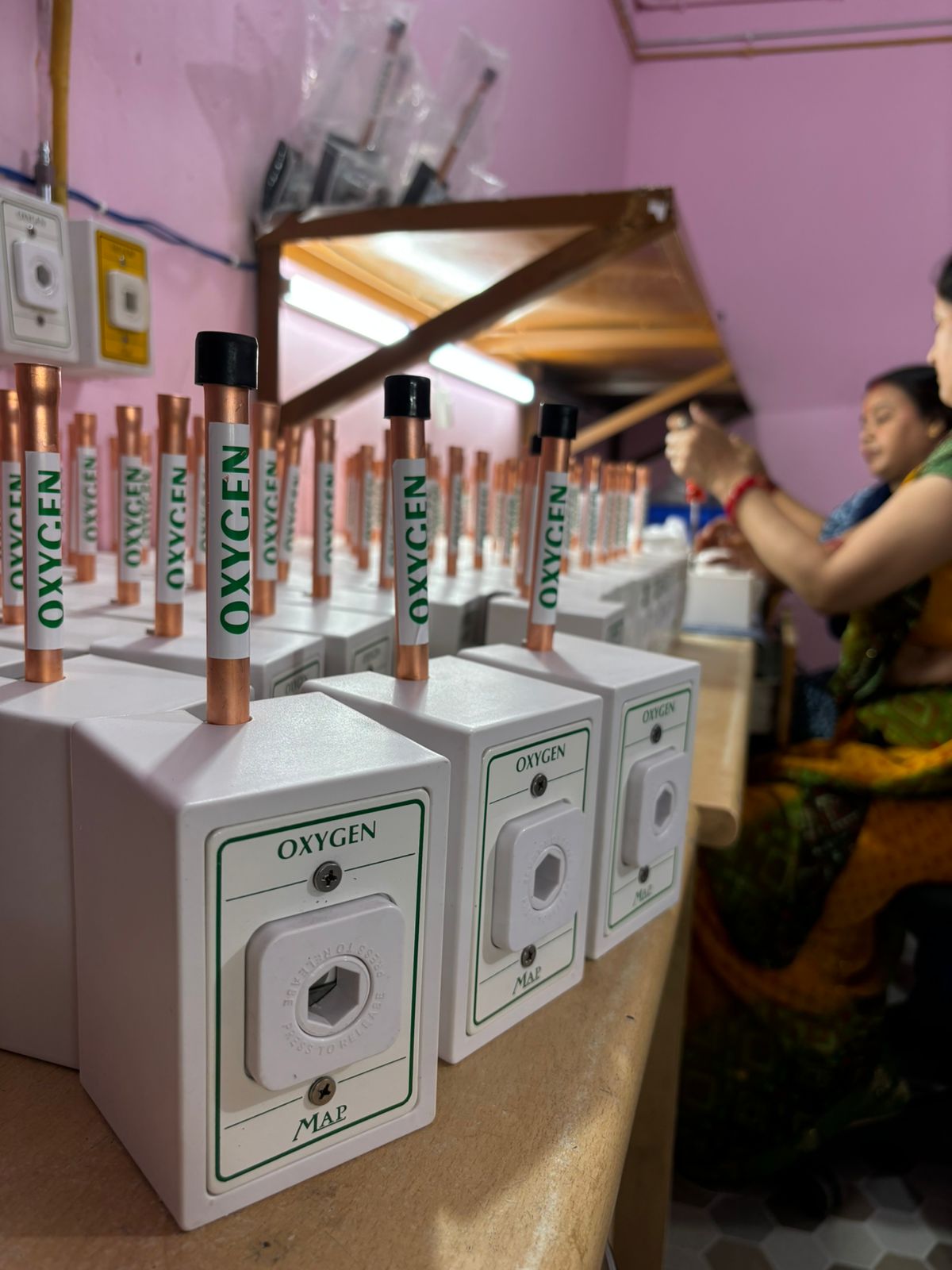

Amico Pb Type Outlet (O2, N2o, Air,air7,co2 & Vac ) - Color: As Per Standard

Amico PB Gas Outlet Specification (As per Indian Standards)

General Specifications:

Brand: MAP
Product Name: Amico PB Gas Outlet
Product Type: Medical Gas Outlet
Design and Construction:

Material: High-grade brass , Medical Grade copper pipe & SS is used for durability and corrosion resistance.

Finish: powder-coated front faceplate for aesthetics and additional protection.
Dimensions:
Height: [115 mm]
Width: [80 mm]
Depth: [85 mm]
Weight: [ 0.72 kg]
Functional Specifications:

Gas Compatibility: Designed for specific gases (e.g., medical air, oxygen, nitrous oxide, vacuum, CO2 etc.)
Pressure Range:
Operating Pressure: 4.2 to 5.6 kg/cm (60 to 80 psi)
Maximum Pressure: 7 kg/cm (100 psi)
Flow Rate: 60 l/min
Connection Type: Quick-connect or DISS (Diameter Index Safety System)
Inlet Connection Size: 1/2 inch BSPT (British Standard Pipe Tapered)
Outlet Connection Size: 1/4 inch BSPT (British Standard Pipe Tapered)
Compliance and Standards:

Certifications:
ISO 9001:2015
ISO 13485:2016
CE Mark
Features:

Safety Mechanism:
Anti-disconnect mechanism to prevent accidental disconnections.
Internal check valve to prevent backflow.
User Interface:

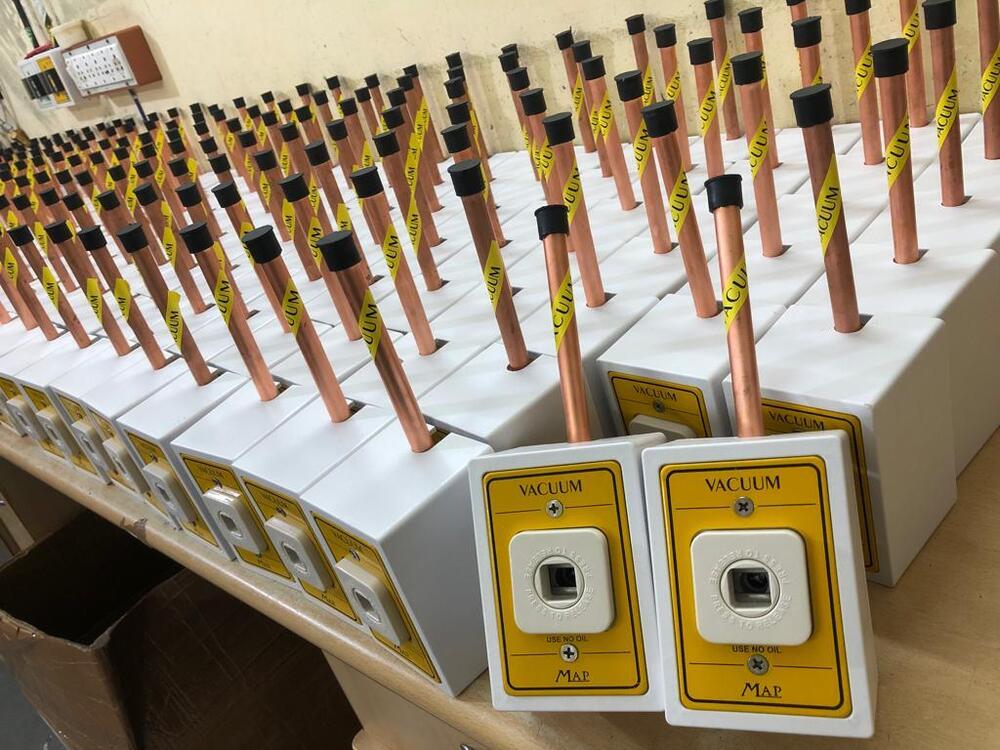

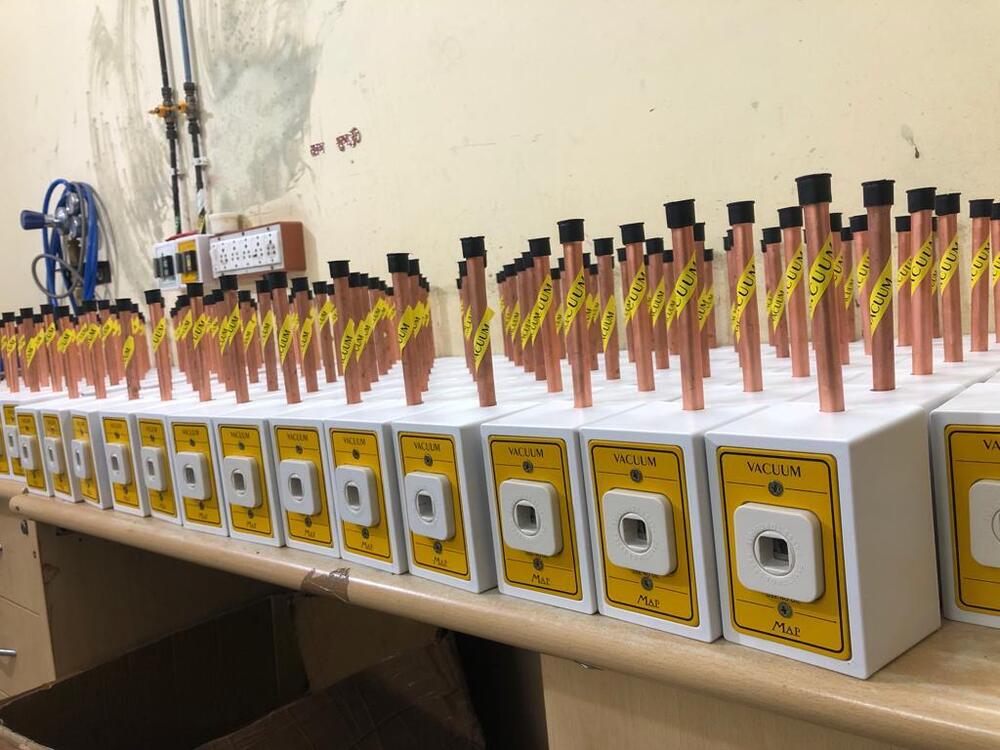

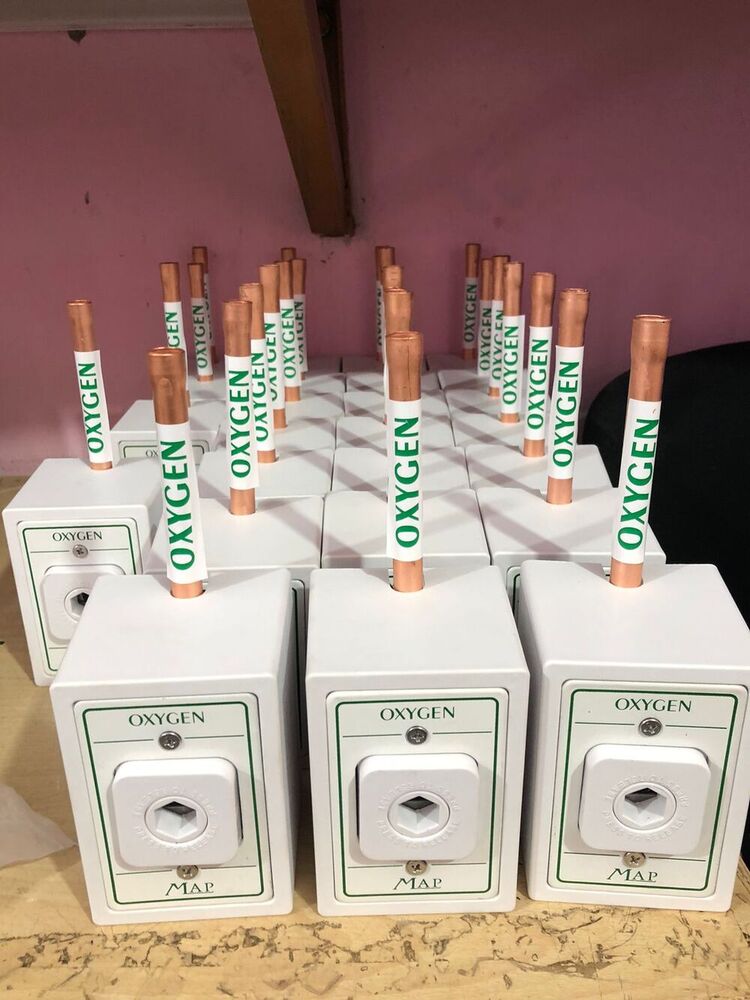

Color-coded for easy identification (e.g., yellow for MED vacuum, Black for MED Air , white for Oxygen)
Ergonomic design for ease of use.
Maintenance:
Serviceable without removing from the wall, Panel etc.
Replaceable & Repairable components for easy maintenance.
Installation:

Mounting Options:
Wall mount
Flush mount
Modular panel mount
Installation Requirements:
Pre-piped manifold system
Proper support structure
Adequate clearance for service access
Environmental Specifications:

Operating Temperature Range: 0C to 50C
Storage Temperature Range: -20C to 60C
Humidity: 0% to 95% non-condensing
Warranty:

Warranty Period:1 years
Coverage: Covers defects in materials and workmanship under normal use.
Accessories and Options:

Optional Accessories:
Pressure gauges
Flow meters
Wall Cover and bezels
Customization: options available with MAP brand & without Brand Name upon request.
