Vacuum Oven - Stainless Steel Body, Digital Temperature Control, 50-150°c Range | Excellent Heat Retention And Vacuum Seal

• Hot air Universal Oven
• Bottle Dryer Oven
• Vacuum Oven
• Tray Dryer Oven
• Mechanical Convection Oven

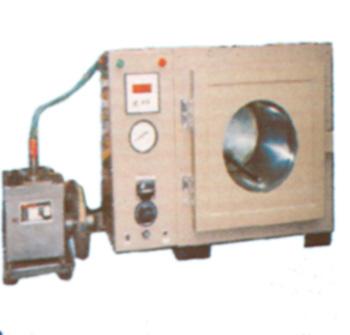

Designed
to provide heating of volatile liquids having low flash points.
Suitable for low
pressure procedures at various temperature. Useful for accelerating drying operations
under vacuum to cut down the drying time. It can be used in Chemical,
Biological, Pharmaceutical and other fields. Comprises of S.s. vacuum
chamber and exterior
of the oven is made of welded M.s. sheet duly powder coated finish.
Door with an observation window is of iron angle hinged type. Heat
resistant glass window of 12.5 mm thick is fitted on the door for
viewing purpose. Neoprene gasket is used for
vacuum tight seal. Temperature is from 50 ^oC to 150 ^oC.
Controlled by Digital Temperature
Indicator cum Controller. Sufficient insulation is there surrounding
the inner
chamber providing high
heat retention inside the oven while keeping the exterior surface
almost cool. Comprising of two precision valves and a a dial type
vacuum gauge. These valves are for connection to the vacuum pump and
the other for introducing dry air. Externally mounted control panel
consisting of controller, indicating lamps etc. Vacuum range 0-760mm of
Hg. Complete with suitable vacuum pump.

Available both in Cylindrical Or Rectangular Models.
