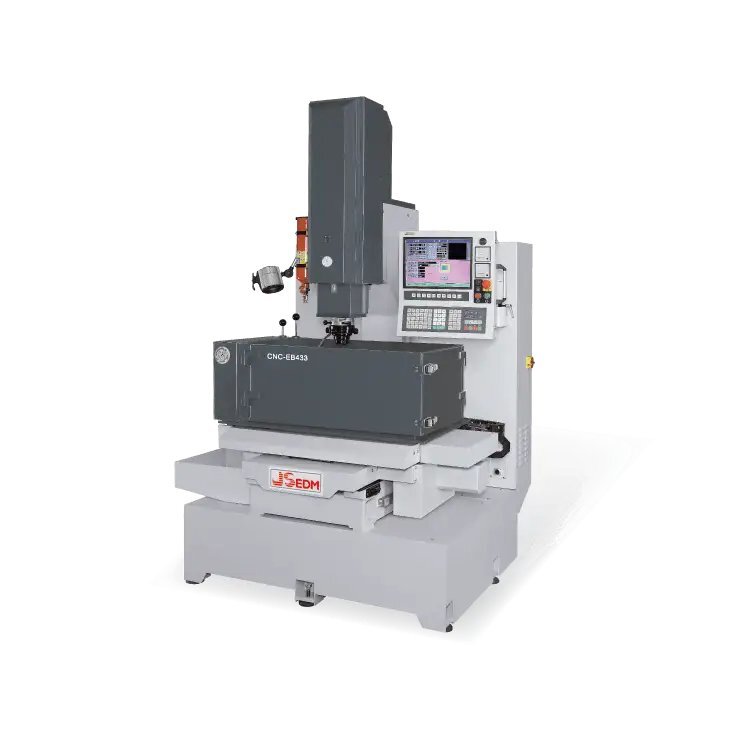

Sinker Edm Machine By Tech Edm Trade Co., Ltd

Being a client oriented company, we are engaged in producing, exporting, distributing, trading and supplying a Sinker EDM Machine in Suzhou, Jiangsu, China.

Specifications:

Parameters / Model No. : EDM450
Working table travel X*Y (mm) : 450*350
Working table size L*W (mm) : 700*420
Principal axis travel (mm) : 200+200
Principal axis load (Kg) : 70
Machine load (kg) : 600
Size of oil reservoir (mm) : 1150*660*450
Oil tank( mm) : 1250*760*550
Machine weight (kg) : 2200
Optimal surface (um) : a 0.3
Min Electrode consumption : 0.30%
Max machining speed (mm3/min) : 400

I. Machine features

1. Machine body structure with advanced castings of resin sand stress relieving.
2. Adopting precision CAD design and high precision frame structure.
3. X, Y axle movement surface with "TURCITE" and ball screw.
4. X, Y axles are made up V-shape and plane structure, ensuring the precision life of mechanical.
5. Adopting Japan SANYO DC servo motor, linear bearing and high strength and precision of integral castings.
6. Using high frequency induction hardening heating treatment.
7. The table which is precision grinded work table.
8. Using centrifugal high pressure oil pump and 10u filter system.
9. The castings are stress relieving cast iron.
10. The desktop uses high frequency quenching.
11. X, Y axles adopts the screw nuts of "model steel "which is produced by Taiwan.That may install ball screw optionally.
12. with functions of large area process and deep holes process.
