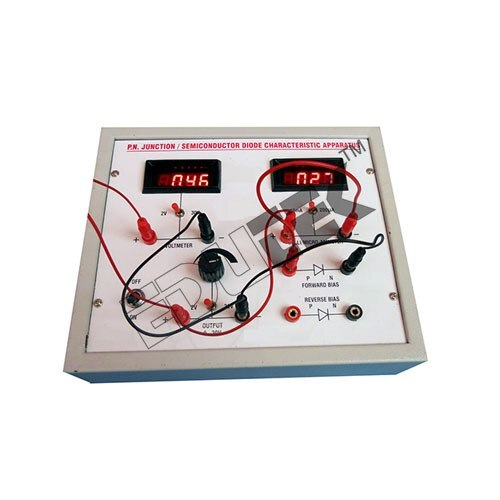

Pn Junction Diode Characteristics - Application: Engineering Electronics Instruments
Price: 1000.00 INR / Piece
(1000.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Components | PN Junction Diode, Variable Power Supply, Voltmeter, Ammeter, Connecting Terminals |
| Resolution | Analog Meter - Least Count 0.01V, 1mA |
| Power Supply | 230V AC, 50Hz |
| Output | Voltage & Current across Diode |
| Power Source | AC main supply |
| Color | Black/Blue Base with Metallic Components |
| Operating Temperature | 0C to 50C |
| Interface | 4mm Banana Terminals |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Features | Complete experimentation unit, Fitted meters, Durable construction, Easy connectivity |
| Display Type | Other, Analog Meter Display |
| Response Time | Instantaneous analog response |
| Input | Variable DC Voltage |
| Product Type | PN JUNCTION DIODE CHARACTERISTICS |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 0 - 30V DC (adjustable) |
| Supply Voltage | 0-30V DC adjustable |
| Size | Standard Laboratory Bench Size |
| Dimension (L*W*H) | 220mm x 180mm x 75mm (approx) |
| Function | To study and plot the Volt-Ampere (V-I) characteristics of a PN Junction Diode in forward and reverse bias |
| Weight | Approx. 1.5 kg |
| Capacity | Single PN Junction Diode Characteristic Measurement |
| Thickness | Panel thickness 3mm (approx) |
| Current Rating | 0-100mA |
| Frequency | 50Hz (power input) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Color | Black/Blue Base with Metallic Components |
| GSTIN | 0% |
Product Overview
Key Features
PN JUNCTION DIODE CHARACTERISTICS
Input: 230 Volts AC 50Hz DC Output
Power supply: 0-2 V DC for forward Bias
Power supply: 0-30VDC for reverse Bias
Provided with two Digital meters
Company Details
Manufacturer and Exporter of all type engineering lab equipment, civil engineering lab equipment, science lab equipment, soil testing lab equipment, concrete Testing Lab Equipment, Vocational Training Equipment, Teaching lab equipment, Pharmacy Lab Equipment, Mechanical Lab for engineering college, fluid mechanic lab for engineering students, etc
Business Type
Exporter, Manufacturer, Supplier
Employee Count
25
Establishment
1973
Working Days
Monday To Saturday
GST NO
06AEWPJ6896D1ZU
Certification
AN ISO 9001:2008
