Multivibrators (Astable/monostable) - 5 To 18v Supply Voltage, Adjustable Duty Cycle, 200ma Output, 1khz Trigger Frequency | High Current, Temperature Stability 50ppm/c
Price:
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Edutek
In Stock
Product Specifications
| Thermal Conductivity | Standard PCB material |
| Output | Square wave or pulse signal |
| Sensors Specification | No Sensors |
| Power Supply | External DC supply |
| Input | Start trigger (for monostable) or continuous DC supply (astable) |
| Display Type | Other, No Display (LED indicators for output signal) |
| Features | Astable and monostable configurations, onboard component selection, LED output indication |
| Power Source | DC Adapter or Battery |
| IP Rating | IP20 (suitable for indoor/bench use only) |
| Interface | Screw terminal, test pins |
| Resolution | Pulse width/frequency adjustable (limited by passive components) |
| Operating Temperature | 0AdegC to 50AdegC |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Components | ICs (commonly 555 Timer), resistors, capacitors, switches, connectors |
| Response Time | Fast, typically microseconds |
| Product Type | MULTIVIBRATORS (ASTABLE/MONOSTABLE) |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 5V to 12V DC |
| Supply Voltage | 5V, 9V, or 12V DC selectable |
| Size | Compact module |
| Dimension (L*W*H) | 75 mm x 55 mm x 20 mm |
| Function | Generates square wave output for timing and pulse applications (Astable: free-running oscillator; Monostable: one-shot pulse generator) |
| Color | Green PCB with white printed components and identification |
| Weight | Approx. 50g (without packaging) |
| Capacity | Single circuit board, supports one configuration at a time |
| Current Rating | Max. 100 mA |
| Thickness | Standard PCB thickness: 1.6 mm |
| Frequency | Adjustable from 1 Hz to 100 kHz (dependent on passive component values) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features

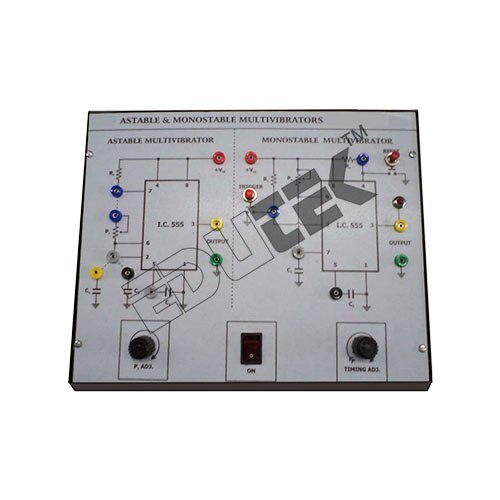

MULTIVIBRATORS (ASTABLE/MONOSTABLE)
Operation on + 5 to + 18 V supply voltage in both as table and monostable modes Adjustable duty cycle.
Timing from sec to hours.
High current output. Capacity to source or sink current of 200 mA Output can drive TIL.
Temperature stability of 50 parts per million (ppm) per C change in temperature or 0.005% per C "Reliable, easy to use, and low cost.
Mains Supply: 230V 10%, 50Hz DC
Bias Voltage: +5V
Frequency of Trigger: 1KHz
Pulse Generator Frequency Range: 600Hz 3.2KHz (approximate)of A stable Multivibrator
Frequency Range: 350Hz 1KHz (approximate) of Bitable Multivibrator
Output Voltage: 5V (approximate)
