Operational Amplifier (Integrator/differnetiator) - Application: Engineering Electronics Instruments
Price: 1200.00 INR / Piece
(1200.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Output | Integrated or differentiated analog output |
| IP Rating | Not rated (open PCB) |
| Interface | BNC or screw terminal input/output connectors |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Features | Switchable integrator/differentiator function, compact design, easy to use |
| Response Time | Instantaneous within bandwidth |
| Power Supply | Dual DC supply |
| Input | Analog voltage input |
| Thermal Conductivity | Standard FR4 PCB |
| Resolution | Analog continuous |
| Components | Op-Amp IC (e.g., 741/LM358), resistors, capacitors, connectors |
| Color | Green PCB with black IC and silver components |
| Operating Temperature | 0C to 50C |
| Power Source | External DC adapter or laboratory power supply |
| Product Type | OPERATIONAL AMPLIFIER (INTEGRATOR/DIFFERNETIATOR) |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 15V DC |
| Supply Voltage | 12V to 15V DC |
| Size | Standard PCB size |
| Dimension (L*W*H) | Approx. 80mm x 60mm x 15mm |
| Function | Operational Amplifier Integrator/Differentiator |
| Weight | Approx. 30g |
| Thickness | Approx. 1.6mm (PCB) |
| Current Rating | Low current (~10-15mA) |
| Capacity | Single-unit |
| Frequency | Operational up to a few kHz (bandwidth limited to educational demonstration) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Color | Green PCB with black IC and silver components |
| GSTIN | 0% |
Product Overview
Key Features
OPERATIONAL AMPLIFIER (INTEGRATOR/DIFFERNETIATOR)
Fixed output DC Regulated power supply of 12 V.

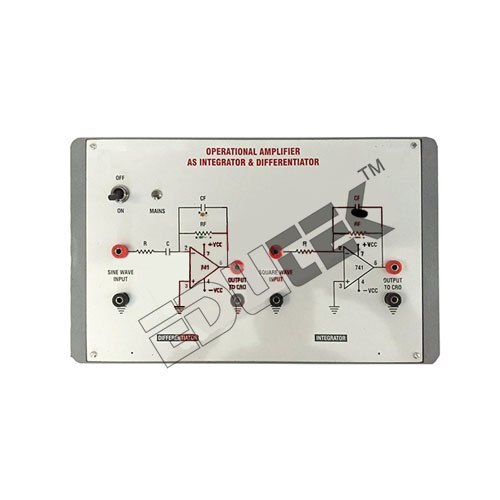

Operational amplifier IC 741 is placed inside the cabinet and connections are brought out at sockets.
Circuit diagram for Differentiator & Integrator are printed on the front panel and components are mounted on the front panel.
