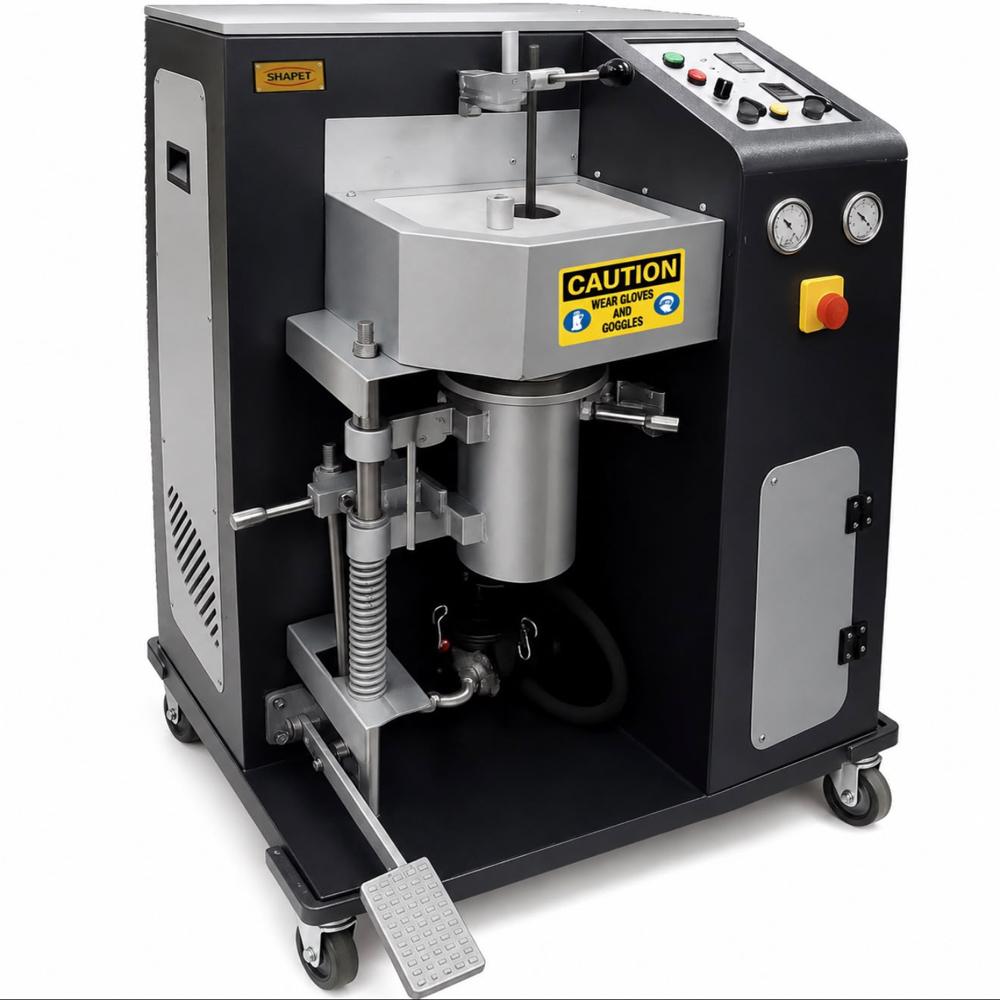

Jewelry Vacuum Casting Machine By Sanei Jewellery Machinery Co., Ltd.

Two-year warranty for casting machine
Three-year warranty for heating power supply

Features of Digital Vacuum Pressure Casting Machine:
Heating system imported from Japan
Temperature measuring system imported from Japan
Precise temperature control, good air tightness and super anti-oxidation protection
Pressure up to 3kg, pressure speed - free adjustment
One thousandth loss rate. The loss is less than Chinese machine and more stable and easily operational than Chinese machine.
6KW-9KW, power can be adjustable
Vaccum pump - automatic shutdown

Specifications: (Model: VIC-2)
Power supply: three phase, 380 +/- 10%, 50/60Hz, 12KVA (10KW)
Output: MAX. 12KW
Maximum copper casting size: Diameter 127mmX254mm(5 inch X 10 inch)
Crucible: special configuration
Crucible size: standard Diameter 78mmX115mm
Melting material: gold alloy, silver alloy
Capacity of melting material: about 240cc
Temperature range: standard K type 1200 a (Optional 1450 a )
Temperature sensing: Standard K-type thermocouple 1200 a (Optional R-type thermocouple 1450 a )
Maximum pressurized pressure: 0.3MPa
Gas: inert gas (nitrogen, argon)
Casting program memory: 50
Cooling method: straight-through
Casting method: vacuum suction pressurization
Abnormal alarm: self-diagnostic data display
Ambient temperature: 5 a -30 a
Ambient humidity: below 80%
Chiller: 2HP
Vacuum device: vacuum pump. Optional 1 Germany Busch pump RA0040, Optional 2 Shanghai Zhongde pump V0040D
