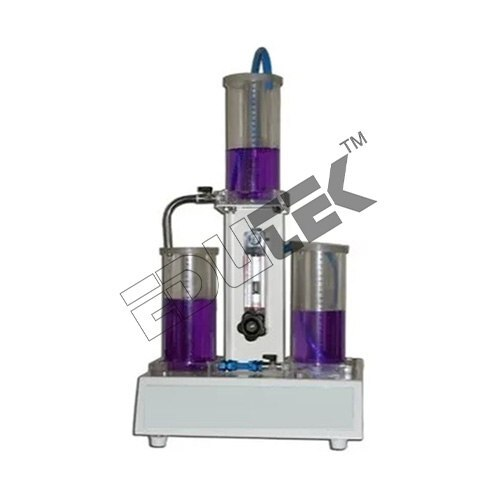

Interacting & Non Interacting System Apparatus - Application: Engineering Testing Equipment

Specification:
INTERACTING & NON-INTERACTING SYSTEM APPARATUS
The setup is designed to study dynamic response of single and multi-capacity processes when connected in interacting and non-interacting mode. It is combined unit to study Single capacity process, Non-interacting process and Interacting process.
The observed step response of the tank level in different mode can be compared with mathematically predicted response.
Setup consists of supply tank, pump for water circulation, Rotameter for flow measurement, process tanks with scales, which can be connected to interacting and no interacting mode.
The components are assembled on frame & base plate.
Experimentation/Learning Objectives Dynamics study for
Step response
Single capacity Tank
Interacting mode
Non-Interacting mode
Utilities Required
Electric supply: Single Phase, 220 V AC, 5-15-amp combined socket with earth connection. Earth voltage should be less than 5 volts.
Water supply
Floor Drain
Floor area: 1.0 m x 1.0 m
Technical Details
Process Tank: Material Stainless Steel, Circular, with graduated level scale (3 Nos.) Capacity 3.5 liters each (approx.)
Supply Tank: Material Stainless steel, Capacity 20 litres.
Overhead tank: Material Stainless steel, Capacity 5 litres.
Water Circulation: FHP Pump, Champion/Standard make.
Piping: SS & PVC, size
Flow Measurement: By Rotameter.
The whole unit is assembled rigidly on a base plate.
