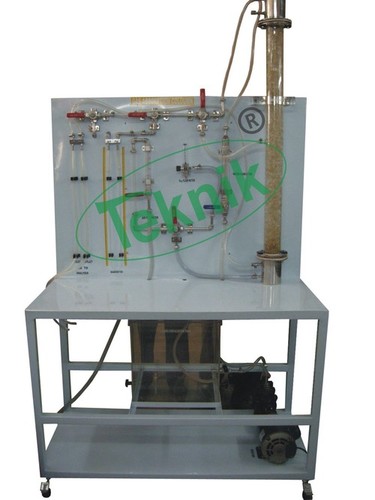

Gas Absorption Column

Our organization is exporting, distributing, and trading Gas Absorption Column to our esteemed customers in Ambala Cantt, Haryana, India.

This apparatus is used to determine the air pressure differential across the column as a function of air flow rate at different water flow rates down the column, and flooding point can be noted. Absorption process of carbon dioxide from air-CO2 mixture into caustic soda solution, is also studied using this system.

The system components are mounted within a floor standing painted steel framework.
The wetted wall column is a glass column with water inlet and outlet sections and is gimbal mounted to ensure that it can be set accurately vertical.
The deoxygenating column is of similar overall size to the wetted wall column, standing vertically adjacent to it. Beside the columns is a control console housing flow meters, pump controls and oxygen analyser. Situated between the columns are two special housings containing the oxygen analysis probes which monitor the oxygen content in the water entering and leaving the absorption column. The apparatus uses water as the working medium, contained in a storage tank at the rear of the unit. Pumps delivering water to the deoxygenator and the absorption column are located at the base of the unit.
Dissolved oxygen at inlet and outlet can be measured in rapid succession. The water drains into the storage tank to be recycled to the deoxygenator.
