Air Flow Studies Apparatus - Steel Frame, 2.75m Inlet Pipe Diameter 80mm | Centrifugal Fan Capacity 218 L/s, Pressure Measurement, Velocity Profile Analysis

Air Flow Studies Apparatus - Steel Frame, 2.75m Inlet Pipe Diameter 80mm | Centrifugal Fan Capacity 218 L/s, Pressure Measurement, Velocity Profile Analysis

Price: 3000.00 INR / Unit

(3000.00 INR + 0% GST)

Get Latest Price

1 Pack Contains :

1

Minimum Pack Size :

1

In Stock

In Stock

-1+

Product Specifications

Power Supply230V AC, 50Hz, Single Phase
HardnessMild Steel Powder Coated, Acrylic Section
Gas Pressure0-2 bar
Interface TypeLCD/Analog meter
Max Height500 mm
Operating Voltage230V AC
AccuracyA+-1% of full scale
UsageFluid Machines Equipments
Port Size50 mm
Number of Specimens1
Temperature5AdegC to 50AdegC
Specimen Size100 mm x 100 mm
Product TypeAir Flow Studies Apparatus
ApplicationFluid Machines Equipments
Display TypeDigital
Test Range0.2-5 mA3/min
Frequency50 Hz
HumidityUp to 95% RH (Non-condensing)
Mounting TypeTable Top
Automation GradeSemi-Automatic
Response Time< 2 seconds
FeaturesPortable, Transparent Test Section, Variable Orifice, Interchangeable Test Models
Resolution0.01 mA3/min
Measuring Range0.2 to 10 mA3/min
Capacity2-10 LPM
Machine WeightApprox. 25 kg
Test Speed0.2 to 2.0 m/s
Test Width150 mm
Test Stroke0-500 mm
Control ModeManual/Automatic
Payment TermsCash Advance (CA), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash in Advance (CID), Cheque
Supply Ability100 Per Week
Delivery Time1 Week
Sample AvailableYes
Sample PolicySample costs shipping and taxes has to be paid by the buyer
Packaging Detailscarton box, export quality also available
Main Domestic MarketAll India
CertificationsISO 9001, 14001 ,CE
Unit TypeUnit/Units
ReturnableNo
Moq1
Price3000.00 INR (Approx.)
Stock Quantity5
Product Unit1 Unit/Units
CurrencyINR
Packsize1
Price Typefixed
Brand NameTeknik
Mop1
Minimum Order Quantity1
Minimum Ordered Packs1
GSTIN0%

Product Overview

Key Features

Air Flow Studies: MTFM-06

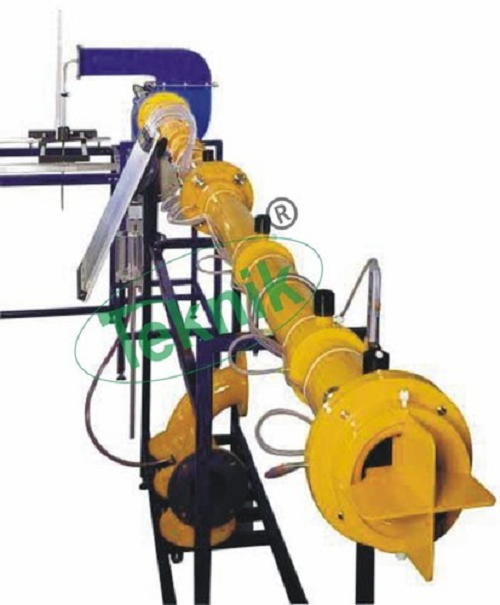

The equipment comprises a long smooth walled pipe connected to the suction side of an electrically driven centrifugal fan. The fan discharge pipe terminates in a flow-control damper for closed-conduit work or a plate containing a small aperture for jet dispersion measurements. Air enters the smooth walled pipe through one of the two flow-measurement nozzles provided.

Pressure tapings along the length of the pipe permit the pressure gradient to be determined. A bend or mitered cascade elbow may be fitted midway along the smooth wall pipe for comparison of pressure losses. Boundary layer growth is determined by the measurement of the velocity profile at five stations along the pipe using a traversing Piton tube.

A conventional flow-measuring orifice plate is supplied for installing in the pipe upstream of the fan for additional demonstrations of pressure loss and recovery. Air-jet studies are carried out on the discharge side of the fan. A Piton tube is traversed vertically and horizontally at different distances from the discharge orifice to investigate the dispersion properties. The equipment is mounted on a floor-standing steel frame with an adjacent support for the extended suction pipe. Pressure measurements are made on a multi-tube inclinable manometer mounted on the support frame.

FEATURES

Alternative bends and bell mouth
Orifice plate
Piton traverse
Jet
Jet traverse Piton assembly

DEMONSTRATION CAPABILITIES

Practical demonstration of the quantitative flows in geometry described in the laws of conservation of mass and momentum
Using manometers to measure pressure drop
Using a Piton-static tube to measure flow
Employing nozzles and orifices to measure flow
Understanding and measuring velocity profiles
Relating pressure loss in a duct to flow rate
Measuring the flow resistance of duct fittings
Understanding the use of Reynolds numbers
Measuring the dispersion of a jet

TECHNICAL SPECIFICATIONS

Centrifugal fan capacity: 218 l/s at STP
Pipe velocity range: 0-35 m/s
Inlet pipe: dia. 80 mm
length: 2.75 m
Interchangeable nozzles: dia. 50 mm and 80 mm
Internal pipe orifice: dia. 50 mm
Jet discharge pipe orifice: dia. 30 mm
Manometer range: 0-283 mm H2O
Manometer fluid: Kerosene (s.g. 0.78)
