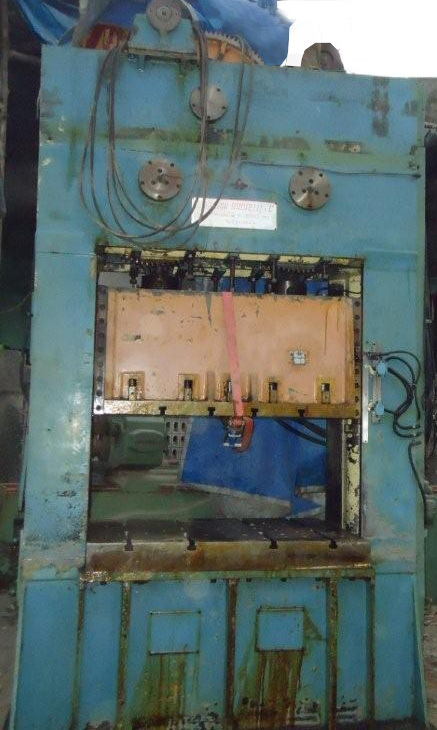

Frame Press - Durable Thick Steel Sheets, Single-gear Drive For Vibration-free Operation, Forged Carbon Steel Eccentric Shaft, Precision Machined Graded Cast Iron Slide

FRAME : It is composed by the thick steel sheets cut by sinking welded and stress-relived before machining, so as to eliminate any residual tensions. The dimension study is carried our according to methods of calculations in order to assure the maximum strength against any deformation even under the highest rated load.

DRIVE : Fully enclosed, well- designed, single-geared, with main shafts supported at three bearing points located close to each other impart sturdiness and eliminate cantilever action. Precision cut, fully enclosed gears running on oil bath with fly wheel and back shaft funning in anti friction bearings provides silent and vibration- free operation.

* Non geared also available upto 100T
Frame Press
Crank Presses
Motion Presses
Joint Press

ECCENTRIC SHAFT : It is obtained from a forged piece of carbon steel. Prior to the machining, the shaft undergoes an ultra-sound inspection and a chemical and metallographic test, Shaft is ground finished on Bearing surfaces, all main Bearings are of Heavy Walled Nickle phosphorous Bronze, which are hand scrapped.

SLIDE : Graded cast Iron Slide, runs on six independent extra ling gibs with replaceable liners, bearing clearance bronze on the gibs are easily adjustable. The massive slide presents wide area and long gibs providing high degree of centering and rigidly at extension of the adjustment.
