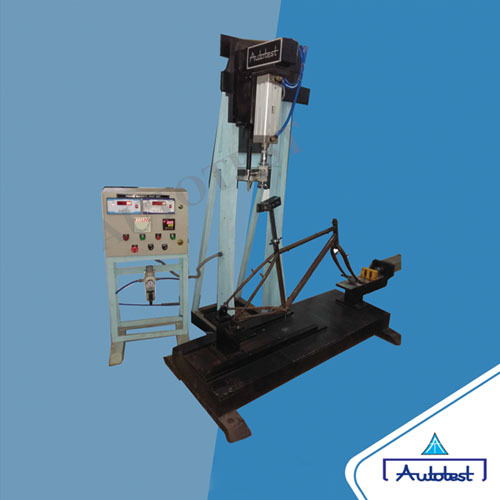

Frame Fatigue Testing Machine

Name: Frame Fatigue Testing Machine
Price: 300000 INR
Availability: InStock

Price: 300000.00 INR / Number

(300000.00 INR + 0% GST)

Get Latest Price

Minimum Pack Size :

In Stock

-1+

Humidity	20% - 90% RH (non-condensing)
Power Supply	AC 220V 50Hz
Mounting Type	Floor Standing
Features	Automatic cycle counting, Overload protection, Data storage
Measuring Range	Adjustable as per test requirement
Gas Pressure	0.4-0.7 MPa
Specimen Size	Up to 2000 mm (customizable)
Interface Type	RS232/USB
Number of Specimens	1
Accuracy	0.5% F.S.
Test Range	Variable based on frame size
Frequency	1 Hz
Application	Fatigue life testing of frame structures (bicycle, furniture, etc.)
Operating Voltage	220V AC
Equipment Type	Fatigue Testing Machine
Max Height	1800 mm
Port Size	1/4 inch
Response Time	10 ms
Resolution	0.1 mm
Temperature	10C - 40C
Automation Grade	Semi-Automatic
Display Type	Digital Touch Screen
Usage	Laboratory/Quality Control
Capacity	Up to 500 kgf
Machine Weight	Approx. 350 kg
Test Speed	0-60 cycles/min (adjustable)
Test Width	600 mm
Test Stroke	0-300 mm (adjustable)
Control Mode	PLC Controlled
Supply Ability	10 Per Month
Delivery Time	7 Days
Price	300000.00 INR (Approx.)
Mop	1
Unit Type	Number
Currency	INR
Stock Quantity	5
Product Unit	1 Number
Returnable	No
Brand Name	AUTOTEST
Moq	1
Price Type	fixed
Minimum Ordered Packs	1
Minimum Order Quantity	1
GSTIN	0%
