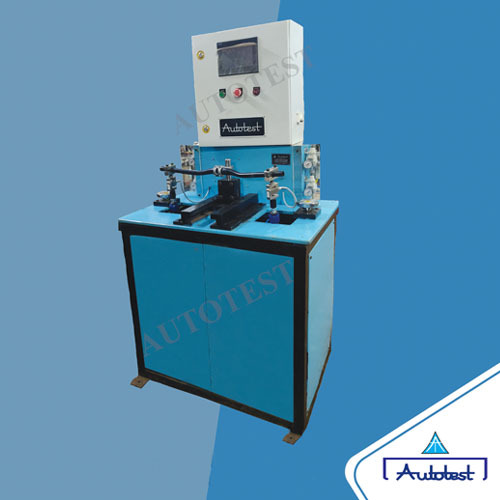

Handle Bar Dynamic Test Rig

Name: Handle Bar Dynamic Test RIG
Price: 300000 INR
Availability: InStock

Price: 300000 INR / Number

Get Latest Price

Minimum Order Quantity :

1 Number

Brand Name :

Autotest

In Stock

Max Height	1800 mm
Measuring Range	0-100 mm displacement
Power Supply	220V, 50Hz, Single Phase
Resolution	0.1 mm
Test Range	0-10,000 cycles
Specimen Size	Standard bicycle/motorcycle handle bar
Frequency	0.1-2 Hz (adjustable)
Automation Grade	Semi-Automatic
Temperature	Ambient 5C-40C
Number of Specimens	1 at a time
Display Type	Digital HMI touch panel
Response Time	Within 1 second
Application	Fatigue and dynamic testing of bicycle or motorcycle handlebars
Accuracy	0.5 mm
Gas Pressure	0.6-0.8 MPa
Humidity	20%-90% RH
Port Size	1/4 BSP
Features	Automatic counting, programmable cycle settings, emergency stop
Operating Voltage	220V AC
Equipment Type	Handle Bar Dynamic Test RIG
Interface Type	Ethernet/USB
Mounting Type	Floor mounted
Usage	Research, Quality Control, Laboratory and Industrial testing
Capacity	Up to 40 kg loading
Machine Weight	Approx. 700 kg
Test Speed	10-60 cycles/min adjustable
Test Width	Up to 800 mm
Test Stroke	Up to 150 mm
Control Mode	PLC based with HMI
Supply Ability	10 Per Month
Delivery Time	7 Days
