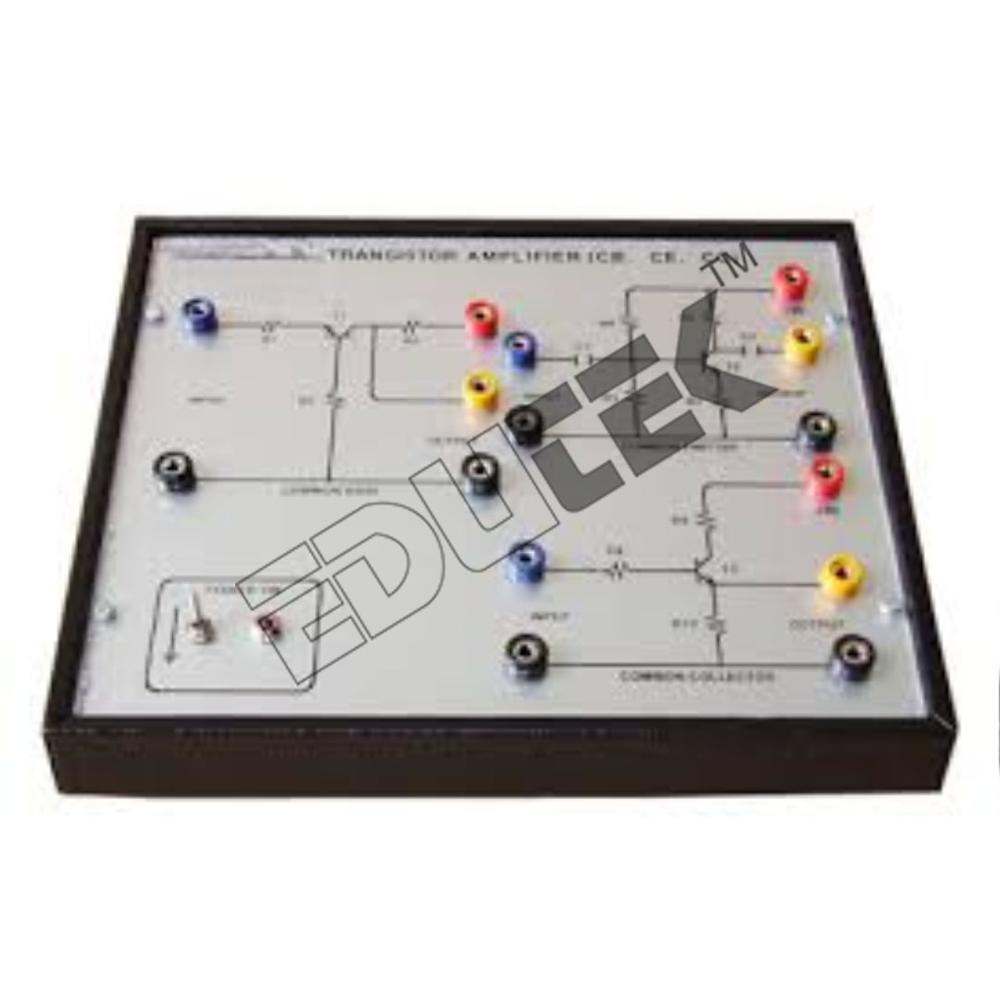

Transistor Amplifier Demonstration Unit
Price: 100.0 INR / Unit
Get Latest Price
Minimum Order Quantity :
10 Unit
Brand Name :
Edutek
In Stock
Product Specifications
| Interface | Banana socket terminals, potentiometer knobs, input/output jacks. |
| Power Source | 12V DC external adapter or battery compartment. |
| Charging Voltage | 12V DC |
| Power Supply | External DC adapter or internal battery compartment. |
| Output | Amplified signal measured via output terminal or speaker socket. |
| Features | Clear circuit layout, color-coded sections, robust construction, easy to use for students, labeled component blocks. |
| Components | Includes transistors, resistors, capacitors, potentiometers, speaker, terminals, and power connector. |
| Sensors Specification | No sensors included. |
| Usage | Laboratory experiments, student demonstration, and teaching support. |
| Input | Audio signal or test signal via input jack terminals. |
| Thermal Conductivity | Standard FR-grade board, not specified. |
| Display Type | Other, Manual analog demonstration with labeled circuit diagram. |
| Operating Temperature | 0AdegC to 50AdegC |
| Response Time | Instant amplification upon signal input. |
| IP Rating | Not rated for ingress protection. |
| Product Type | Transistor Amplifier Demonstration Unit |
| Application | Electronics teaching, practical circuit analysis, and amplifier experiment setup. |
| Rated Voltage | 12V DC |
| Supply Voltage | 12V DC |
| Size | Standard educational panel size, 30 cm x 22 cm |
| Dimension (L*W*H) | 30 cm x 22 cm x 8 cm |
| Function | Demonstrates the working of transistor amplifiers for educational purposes. |
| Color | Grey and Black panel with multi-color labeled sections. |
| Weight | Approx. 1.5 Kg |
| Thickness | Panel thickness approx. 3 mm. |
| Current Rating | Max. 500 mA |
| Capacity | Single unit demonstration, supports up to two amplifier stages. |
| Frequency | Handles signals up to 20 kHz |
| Payment Terms | Cheque, Cash in Advance (CID), Letter of Credit (L/C), Cash Advance (CA), Telegraphic Transfer (T/T) |
| Sample Available | Yes |
| Sample Policy | Sample costs shipping and taxes has to be paid by the buyer |
| Packaging Details | carton box, export quality also available |
| Main Export Market(s) | Middle East, Western Europe, Africa, Eastern Europe, Asia |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001 ,CE |
