Self-commutated Converter Circuits Unit - Application: Engineering Labs at Best Price in Ambala Cantt

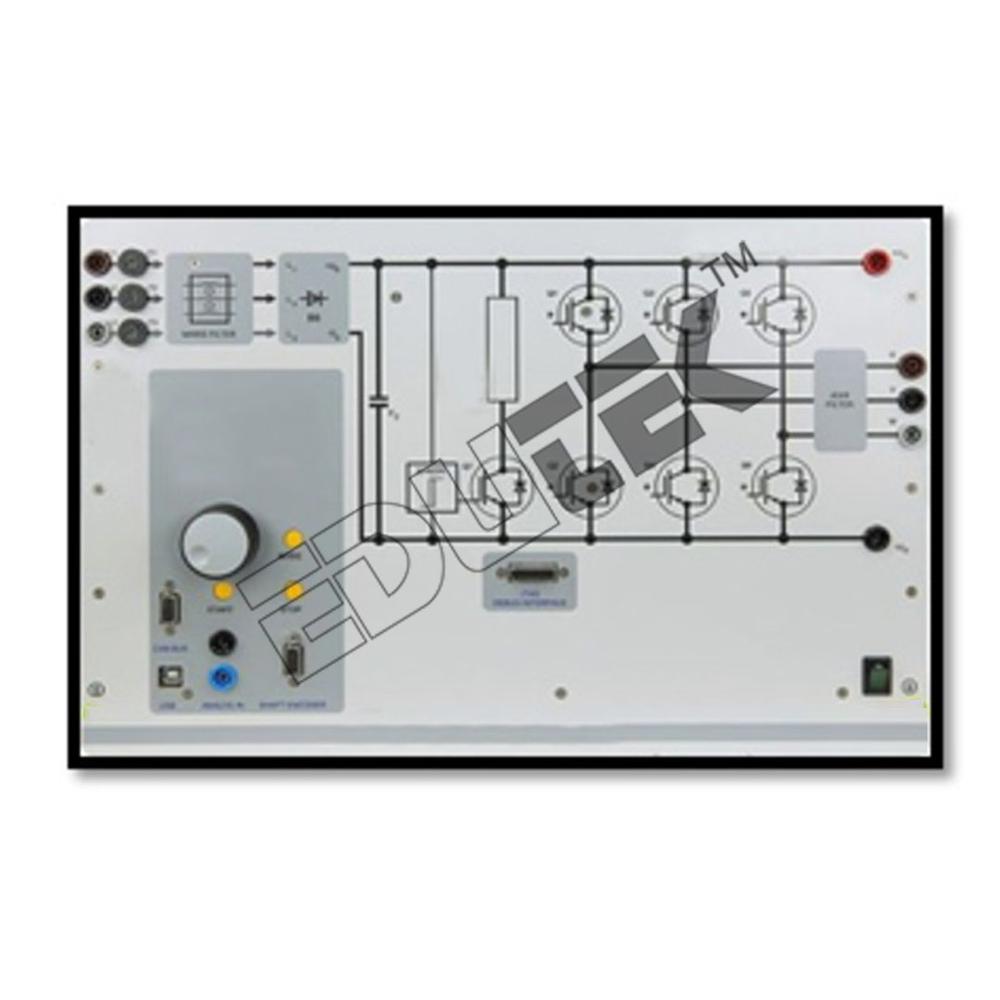

Self-commutated Converter Circuits Unit - Application: Engineering Labs

Get Latest Price

Minimum Order Quantity :

1 Unit

Brand Name :

Edutek

In Stock

Product Specifications

Response Time	<1 ms switching time
Sensors Specification	Panel-mounted voltage and current sensors
Features	Short circuit & overload protection, Interlocked operation, In-built measurement meters, Modular design
Power Supply	power supply 220V, 60Hz, 3-phase
Components	IGBT/Thyristor modules, control circuits, meters, switches
Output	Variable DC
Input	3-Phase AC
Thermal Conductivity	Standard air-cooled
Power Source	AC mains
Usage	Laboratory Training / Testing Unit
Interface	Front-panel terminals and banana sockets
Charging Voltage	Variable up to rated voltage
Operating Temperature	0AdegC to 50AdegC
IP Rating	IP20
Resolution	Display resolution to 0.01 units
Product Type	Power Electronics Training Equipment
Application	Engineering Labs, Educational Institutes, Technical Training
Rated Voltage	220V AC
Supply Voltage	220V AC, 3-Phase
Size	Standard tabletop unit
Dimension (LWH)	600 mm x 450 mm x 300 mm
Function	Demonstrates self-commutating converter circuits for educational and laboratory purposes
Color	Blue and White
Weight	Approx. 18 kg
Warranty	1 Year
Current Rating	10A per phase
Capacity	4 kVA maximum load
Thickness	2 mm chassis panel thickness
Frequency	60Hz
Payment Terms	Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA), Cash in Advance (CID)
Sample Available	No
Sample Policy	Sample costs shipping and taxes has to be paid by the buyer
Packaging Details	carton box, export quality also available
Main Export Market(s)	Asia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market	All India
Certifications	ISO 9001, 14001 ,CE
