Sawtooth Generator Using Op-amp - Application: Engineering Electronics Instruments
Price: 1200.00 INR / Piece
(1200.00 INR + 0% GST)
Get Latest Price
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Features | Compact, easy integration, adjustable output frequency, ready-to-use module |
| IP Rating | No IP rating (indoor laboratory use only) |
| Power Supply | DC power supply |
| Input | DC supply voltage |
| Resolution | Depends on oscilloscope; analog generator does not limit output resolution |
| Response Time | Instantaneous, limited by RC time constants |
| Output | Sawtooth waveform signal |
| Sensors Specification | No sensors included |
| Charging Voltage | N/A (not a rechargeable device) |
| Operating Temperature | 0C to 50C (ambient lab conditions) |
| Display Type | Other, No display - output observed via oscilloscope. |
| Components | Operational amplifier IC (e.g., 741), capacitors, resistors, PCB, connectors |
| Processor Speed | N/A (Analog device, no processor) |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Interface | 2-pin DC input terminal, 2-pin output terminal |
| Power Source | External regulated DC power supply |
| Color | Blue and white (as per PCB and components visible in the image) |
| Thermal Conductivity | Standard for PCB and passive components, not specified |
| Product Type | SAWTOOTH GENERATOR USING OP-AMP |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 5V - 15V DC (depends on Op-Amp specification) |
| Supply Voltage | +12V DC typical |
| Size | Standard mini PCB size (approx. 72 mm x 48 mm) |
| Dimension (L*W*H) | 72 mm x 48 mm x 17 mm (including components) |
| Function | Generates a continuous sawtooth waveform for use in electronic circuits and testing applications. |
| Weight | Approx. 50 grams (including PCB and mounted components) |
| Thickness | PCB thickness approx. 1.6 mm |
| Current Rating | Approx. 10-30 mA |
| Capacity | Single-channel output |
| Frequency | Adjustable, typical range 100 Hz - 5 kHz (based on RC components) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Packsize | 1 |
| Product Unit | 1 Piece/Pieces |
| Returnable | No |
| Moq | 1 |
| Currency | INR |
| Brand Name | EDUTEK |
| Mop | 1 |
| Price | 1200.00 INR (Approx.) |
| Stock Quantity | 5 |
| Price Type | fixed |
| Unit Type | Piece/Pieces |
| Color | Blue and white (as per PCB and components visible in the image) |
| Minimum Order Quantity | 1 |
| Minimum Ordered Packs | 1 |
| GSTIN | 0% |
Product Overview
Key Features

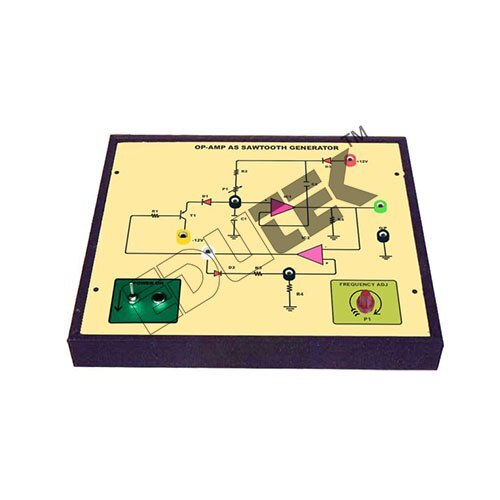

SAWTOOTH GENERATOR USING OP-AMP
Dedicated trainer board for each circuit.
Completely self-contained stand-alone unit.
Construction and study of Op amp as saw tooth wave generator.
Study the working and observe the output saw tooth wave.
