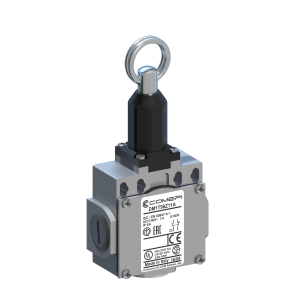

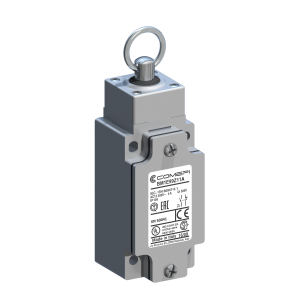

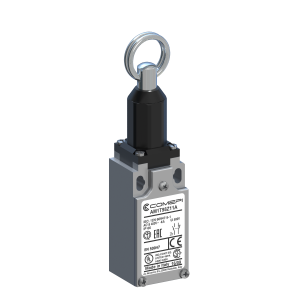

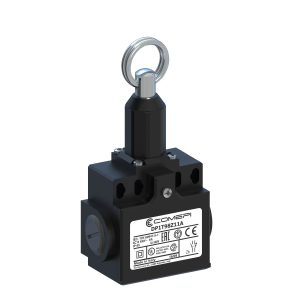

Pull Wire Limit Switches (Traction Operation)

Name: Pull wire limit switches (Traction operation)
Availability: InStock

Price Trend: 3000-4500 INR / Piece

Get Latest Price

Minimum Order Quantity :

10 Piece

Brand Name :

Comepi Italy

In Stock

Temperature Range	-25AdegC to +70AdegC
Number of Module	Single module
Max. Current	10A
Automation Grade	Manual
Rated Voltage	250V AC
Circuit Type	1NO+1NC
Finish Type	Textured coating
Mechanical Life	>1 million operations
Response Time	Instantaneous mechanical action
Protection Level	IP65
Product Type	Pull wire limit switch (Traction operation)
Material	Reinforced Glass Fiber Polyamide Body, Zinc-plated Metal Parts
Insulation Resistance	100MI(c) (at 500V DC)
Contact Resistance	a%0$?25mI(c)
Max. Voltage	500V AC/DC
Operating Temperature	-25AdegC to +70AdegC
Stoke	Manual wire pull (traction)
Size	145mm x 80mm x 56mm
Color	Grey / Yellow actuator
Weight	Approx. 570g
Mounting Type	Surface mounting (4-point) with cable entry
Current Rating	10A
No Of Poles	2
Supply Ability	100 Per Month
Delivery Time	6 Week
Sample Available	Yes
Sample Policy	If order is confirmed we will reimburse the sample cost
Main Export Market(s)	Asia
Main Domestic Market	All India
Certifications	CE
