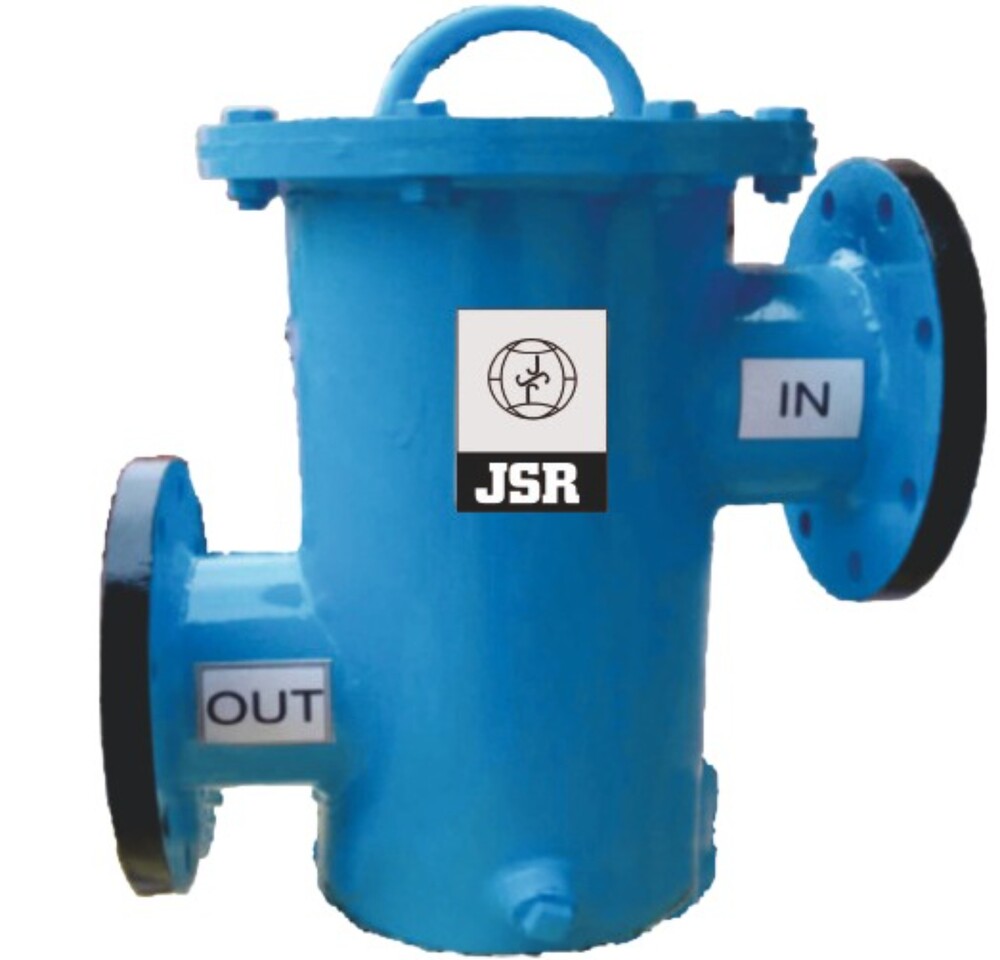

Pot Strainer - Application: Water Application

Pot Strainer Technical Specification
1. General Description
A pot-type (basket) strainer used in piping systems to remove:
Dirt, rust, scale, and debris
Installed typically in return headers or pump suction lines in HVAC systems
Protects pumps, heat exchangers, valves, and other equipment
2. Construction
Type: Inline pot / basket type strainer
Body Shape: Cylindrical "pot with large sediment chamber
Cover: Bolted / quick-open top cover for maintenance
Internal Element: Removable basket or perforated screen
Drain Connection: Bottom drain valve for sludge removal
Vent Connection: Air vent at top (optional)
3. Material of Construction (MOC)
Body:
Cast Iron / Carbon Steel / Mild Steel / Stainless Steel
Basket / Screen:
SS 304 / SS 316
Gasket:
EPDM / Neoprene / PTFE / Graphite
Bolts & Nuts:
Carbon steel / Stainless steel
4. Size Range
Typical sizes:
40 NB to 600 NB (1 to 24)
Custom sizes available for large flow systems
5. Operating Conditions
Pressure Rating:
PN10 / PN16 / ANSI 150 / 300
Hydrostatic Test Pressure:
30 kg/cm (approx. 425 psi for CS body)
Temperature Range:
Up to 200C (depending on material)
6. Filtration Details
Mesh Size:
10 to 500 microns (typical range)
Perforation:
3 mm holes (typical HVAC practice)
Filtration Area:
Large basket area for low pressure drop
Magnet (optional):
For ferrous particle removal
7. Design Features
Large dirt holding capacity less frequent cleaning
Low pressure drop at high flow rates
Removable basket without pipeline disconnection
Provision for:
Differential pressure gauge
Quick opening cover
Lifting davit (for large sizes)
8. End Connections
Flanged (ANSI B16.5 / PN standard)
Threaded / Socket weld / Butt weld (optional)
9. Installation Requirements
Installed:
In
