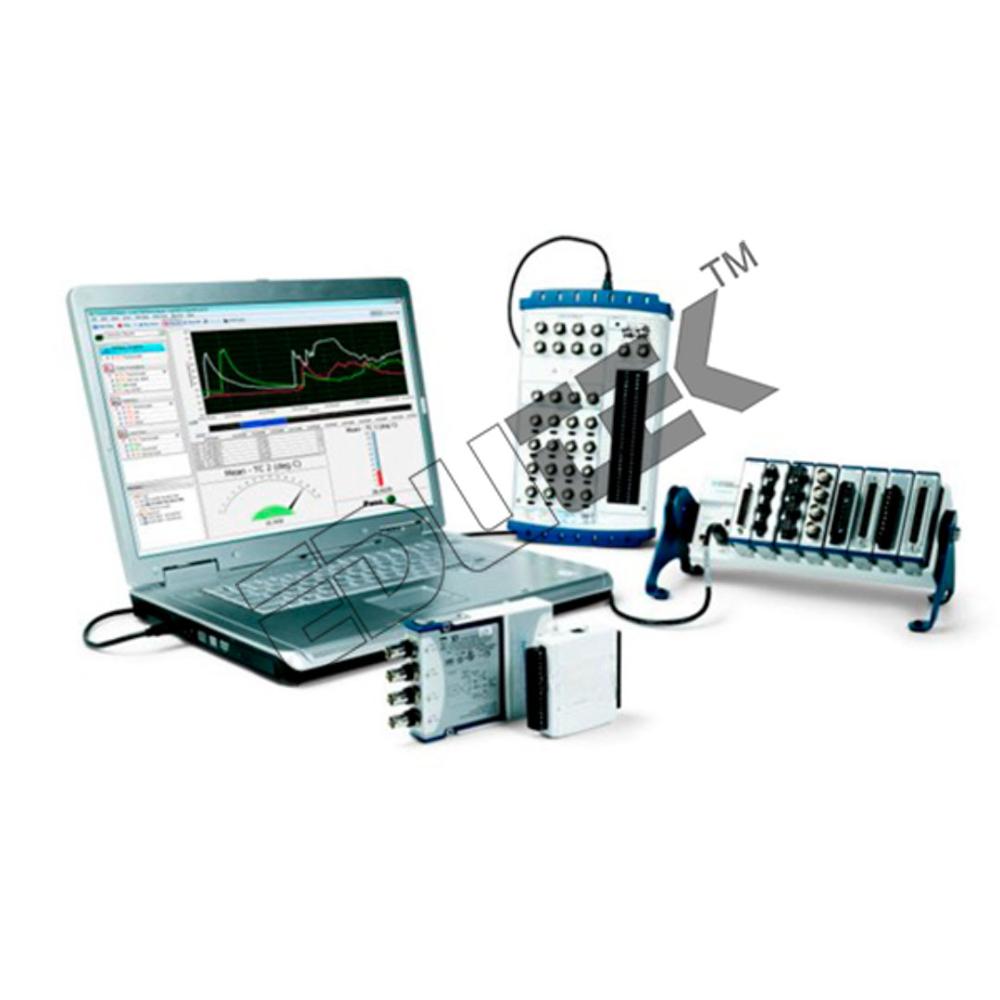

Portable Data Acquisition (Daq) Device

Price:

Get Latest Price

Minimum Order Quantity :

1 Unit

Brand Name :

Edutek

In Stock

Product Specifications

Components	DAQ unit, USB cable, connectors, software CD
Operating Temperature	0AdegC to 50AdegC
Usage	Portable field data logging, laboratory data acquisition, industrial process monitoring
Display Type	Other, LED indicators for channel status
Power Source	Rechargeable internal battery / USB
IP Rating	IP20
Response Time	<1 ms
Resolution	16-bit analog-to-digital resolution
Input	Multiple analog and digital channels
Charging Voltage	5V DC via USB
Output	USB interface to PC, data export via SD card
Processor Speed	32-bit microcontroller, 72 MHz
Power Supply	Rechargeable battery / USB powered
Sensors Specification	Compatible with a variety of sensors (thermocouple, RTD, voltage, current)
Features	Portable, lightweight, PC connectivity, plug-and-play, expandable memory
Interface	USB 2.0, SD card slot, digital/analog screw terminals
Product Type	Portable Data Acquisition (DAQ) Device
Application	Industrial, laboratory, field data collection
Rated Voltage	5V DC
Supply Voltage	5V DC/USB
Size	Compact, pocket-sized
Dimension (LWH)	Approx. 180mm x 85mm x 40mm
Function	Multi-channel data acquisition, logging, and real-time monitoring of sensor/data signals
Color	Black with blue front panel
Weight	Approx. 800 grams
Capacity	Supports up to 8 input channels
Thickness	Around 40 mm
Current Rating	Max 500 mA
Frequency	Sampling frequency up to 20 kHz
Payment Terms	Letter of Credit (L/C), Cash in Advance (CID), Cash Advance (CA), Telegraphic Transfer (T/T), Cheque
Sample Available	Yes
Sample Policy	Sample costs shipping and taxes has to be paid by the buyer
Packaging Details	carton box, export quality also available
Main Export Market(s)	Eastern Europe, Western Europe, Middle East, Asia, Africa
Main Domestic Market	All India
Certifications	ISO 9001, 14001 ,CE
