Inverted Polarizing Microscope - Hard Powder Coated Finish, 130mm Rotatable Circular Stage With Centring System And Graduated Vernier | Coarse And Fine Focusing, 50mm Plano-concave Mirror Illumination, Achromatic Objectives And Eye-pieces Included
Price:
Get Latest Price
In Stock
Product Specifications
| Stage Diameter | 130 mm |
| Objectives | 4x, 10x, 40x |
| Eyepieces | 10x, 5x, 10x |
| Condenser | Abbe 1.25 NA |
| Illumination | Mirror/Electric |
| Polarizer | Rotatable |
| Usage | Material analysis, birefringence studies, crystallography |
| Features | Precise focusing, High resolution, Durable design, Widefield view, Easy operation, Versatile use |
Product Overview
Key Features
* Observation tube has analyzer and Betrand lens. A quadruple nose-piece with positive click stop for par-centering of objectives is fitted to the tube.
* A removable type A wave length plate is provided in the slot above the nose-piece.
* Rotatable circular stage dia 130mm graduated to 360A has vernier reading 0.1A . The stage has centering system by two knurled head screws.
* Coarse and fine focusing by separate knobs. Preset stopper to protect the slides.
* Abbe condenser N.A.1.25 with iris-diaphragm is movable up & down by rack and pinion motion.
* Rotatable and graduated swing out type polariser is provided below the condenser.
* Illumination by 50mm dia plano-concave mirror interchangeable with sub-stage electric illuminator.
* Achromatic objective P4x, P10x, P40x(s) & eye-pieces WF10x, H5x with cross line and H10x with micrometer scale.
* Optional (At extra price):
(i) Achromatic objectives P20x & P60x (s).
(ii) Sub-stage electric illuminator interchangeable with mirror workable on 220V AC 50Hz supply.
(iii) Stage micrometer slide.
* Finish : The microscope is hard powder coated for long life.
* Packaging : The microscope is packed in polished plywood cabinet with lock and key, dust cover and cleaning cloth.
Company Details
Focusing on a customer-centric approach, GENERAL MANUFACTURING COMPANY has a pan-India presence and caters to a huge consumer base throughout the country. Buy Microscope in bulk from GENERAL MANUFACTURING COMPANY at Trade India quality-assured products.
Business Type
Manufacturer, Supplier
Employee Count
8
Establishment
1985
Working Days
Monday To Sunday
Related Products
Polarizing Microscope - UCIS Infinity Optical System, Anti-microbial Body , Trinocular Viewing Head 40X-1000X Magnification, 178mm Rotating Stage
Contemporary Export Industry
Ambala Cantt, Haryana

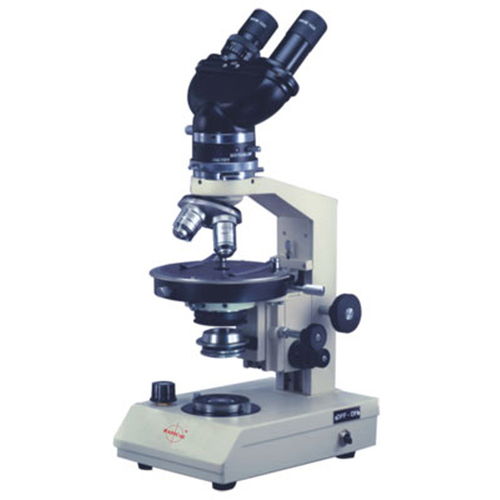

Advanced Polarizing Microscope Rpl-3B - Application: Petrography
