Pneumatic Riveting Machine - Steel, 400mm X 350mm X 800mm | Max Riveting Diameter 6mm, Semi-automatic Operation, Double-hand Buttons Or Foot Pedal
Share

Pneumatic Riveting Machine - Steel, 400mm X 350mm X 800mm | Max Riveting Diameter 6mm, Semi-automatic Operation, Double-hand Buttons Or Foot Pedal

Price Trend: 1000.00 - 2500.00 USD

Get Latest Price

Minimum Order Quantity :

1

In Stock

In Stock

Product Specifications

TypeBM6TQ
MaterialSteel
Capacity0.5 Cubic Meter (m3)
ComputerizedNo
Automatic GradeSemi-Automatic
Voltage415 Watt (w)
Frequency (MHz)60 Hertz (HZ)
Preheating Plate Size400mmA--350mmA--800mm
Cutting Thickness500 Millimeter (mm)
Weight75 Kilograms (kg)
Dimension(L*W*H)400mmA--350mmA--800mm Millimeter (mm)
WarrantyOne year
FOB PortShanghai
Payment TermsLetter of Credit (L/C), Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Cash in Advance (CID), Cash Advance (CA)
Supply Ability100 Per Month
Delivery Time40 Days
Sample PolicyContact us for information regarding our sample policy
Packaging DetailsFumigation wooden box
Main Export Market(s)Australia, North America, South America, Eastern Europe, Middle East, Central America, Africa, Western Europe, Asia
Main Domestic MarketAll India
CertificationsISO:9001,CE

Product Overview

Key Features

We feel proud to introduce ourselves as a well reputed Exporter, Manufacturer & Supplier of Pneumatic Riveting Machine (BM6TQ).

Characteristics:
a Desktop style
a Max riveting diameter 6mm
a Power head movable
a Pressure by stepless regulation
a Pneumatic driving
a Rotary part protected
a Double-hand buttons or foot pedal
a Aerosol lubrication
a Set the riveting time as will

Scope of applications : The instruments and meters, daily hardware, electronic products, automobile parts, etc.

Customized available

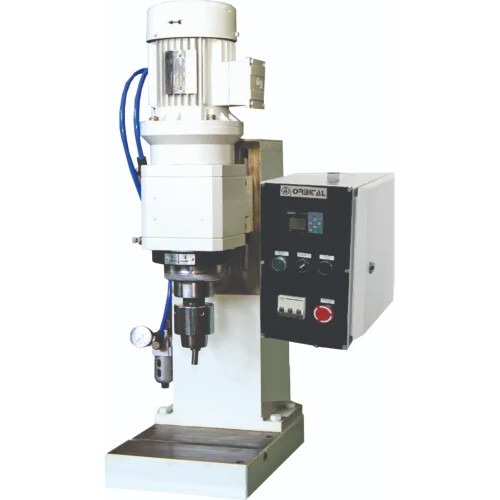

The model of BM6TQ is a kind of smaller desktop pneumatic riveting machine with orbital structure. The machine's power head system adjustment up and down to meet variety of workpiece's body and shape. The pneumatic system equipped with aerosol lubricating, double way regulation to control piston stroke speed effectively. Electric control system equipped with counter and time relay to easy and simple operations. T-slot on bench to fixing clamping apparatus available, positioning hole is coaxial with spindle to insure riveting process accuracy at A 0.02mm.

Specification:

a Max riveting diameter : 6mm ( solid steel rivet )
a Max riveting pressure : 9Kn
a Stroke : 20mm
a Available working space : 150mm
a Throat depth : 125mm
a Riveting tool length : 50mm
a Eccentric angle : 4A
a Motive force : Pneumatic
a Workbench dimensions : 320mmA 220mm
a Power : 0.92Kw
a Physical size : 400mmA 350mmA 800mm
a Net weight : 150Kg

Company Details

As a leading provider of riveting machines and equipment in China, Wuhan Rivet Machinery designs, manufactures and supports reliable and economical riveting products for the automobile, motorcycle, aerospace, hardware and architectural industries. Our companya s products and tailored services include radial riveting, orbital riveting and ladder making riveting with various features and specifications. Wuhan Rivet Machinery is a Chinese private science and technology enterprise founded in June 2002. Our global reach has expanded over the years, making us a large manufacturer and service provider for riveting machines today. In 2012, the company partnered with Wuhan University and built the only national riveting technology research lab, to develop the third generation Wheel-hub Bearing Intelligent riveting machine and CNC Turret riveting machine. Wuhan Rivet Machinery received the prestigious a High and New-tech Enterprisea award from the National Government in 2012. We have a long tradition of innovation and quality improvement. By 2012, we completed 13 large-scale projects and obtained 11 National Patents with independent intellectual copyrights. Our Double-Cylinder pneumatic riveting machine received national funding for its contribution to environmental protection and energy conservation. Wuhan Rivet designs and builds assembly equipment solutions with more than 100 unique styles, functions and techniques, including: a Desk Top/ Vertical/ Horizontal riveting machine a Hydraulic/ Pneumatic riveting machine a Rivetless riveting machine a Self-piercing riveting machine a CNC riveting machine a Rolling machine a Auto-feed riveting machine a Riveting production line a Special purpose riveting machine (customized): hub-bearing riveting machine with intelligentized, chassis riveting machine, ladder making machine, engine cap riveting machine, wiper, aircrft brake pad riveting machine etc. Our corporate mission statement is a Unmatched quality and credible servicea . It expresses our commitment to contributing to the industry and society by offering the highest product quality with free one-year warranty and extensive custom support. All Wuhan Rivet products comply with ISO9001/European CE standards and have been exported to over 50 countries and regions, including US, UK, Japan, France, Italy, Germany, India, Russia,Poland, Brazil, Argentina and Malaysia etc.
