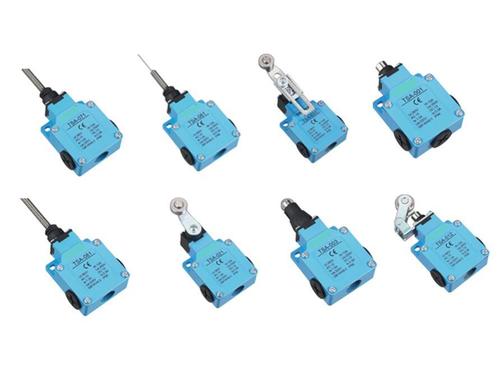

Limiting Switch By Jingda Electrical Group Co., Ltd.
Price:
Get Latest Price
In Stock
Product Specifications
| Contact Form | Double |
| Contact Resistance | 25mΩ max |
| Features | Double circuit, Rigid construction, Small volume, Waterproof, Oil-proof, Long life, Smooth operation, Easy wiring, Versatile actuators |
| Insulation Resistance | 100MΩ min |
| Material | Plastic, Aluminum |
| Operating Frequency | 120/30 operations/minute |
| Operation Speed | 0.5mm-50cm/sec |
Product Overview
Key Features
Features :
Double circuit type of limit switch Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box) Small volume, water-proof and oil-proof construction Built-in basic switch with double spring mechanism, longer mechanical life
Smooth operation with greater OT Easy-to-wire circuit opening design Wide variety of actuators, easily use Contact Form Ratings
NOTES:
1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2.Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.
Characteristics :
Operation speed : 0.5mm-50cm/sec
Operating frequency :Mechanical: 120 operations/minute, Electrical: 30 operations/minute
Contact resistance : 25mIC max. (initial value)
Insulation resistance : 100mIC min. (at 500VDC)
Dielectric strength : 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity 1500VAC, 50/60 HZ for 1 minute between current carrying
and non-current-carrying metal part
Double circuit type of limit switch Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box) Small volume, water-proof and oil-proof construction Built-in basic switch with double spring mechanism, longer mechanical life
Smooth operation with greater OT Easy-to-wire circuit opening design Wide variety of actuators, easily use Contact Form Ratings
NOTES:
1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2.Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.
Characteristics :
Operation speed : 0.5mm-50cm/sec
Operating frequency :Mechanical: 120 operations/minute, Electrical: 30 operations/minute
Contact resistance : 25mIC max. (initial value)
Insulation resistance : 100mIC min. (at 500VDC)
Dielectric strength : 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity 1500VAC, 50/60 HZ for 1 minute between current carrying
and non-current-carrying metal part
