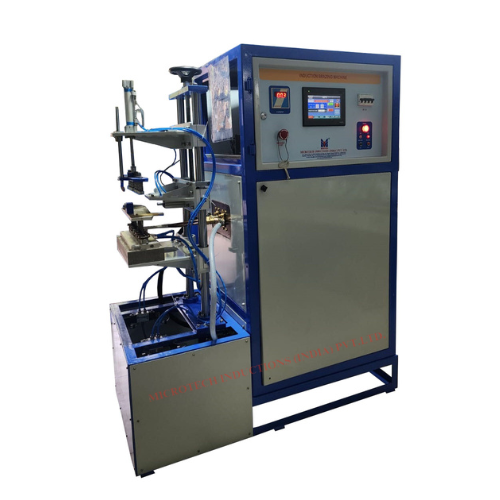

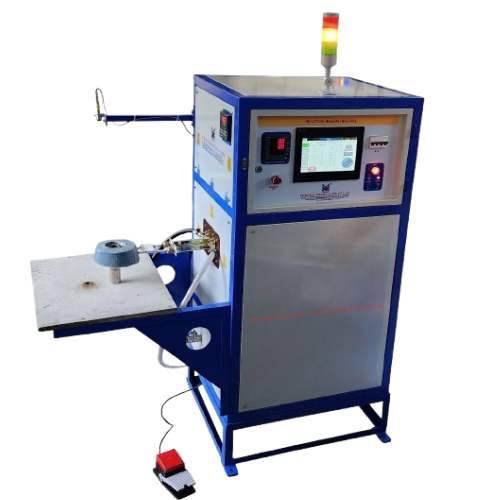

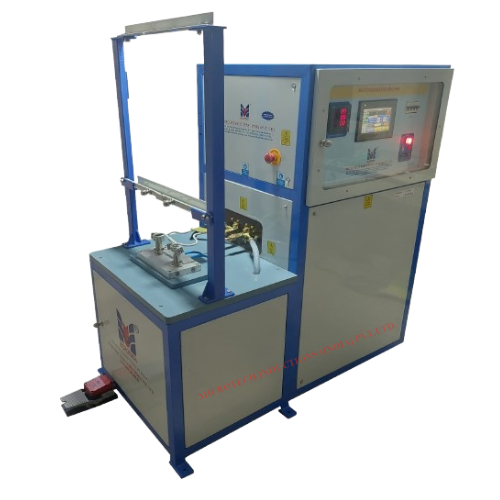

Induction Brazing Machine - 50 Hertz (Hz), Metal Frame, Fully Automatic, 230 Volt (V), Durable, For Brazing Material, Driven Type: Electric, Hydraulic, Pneumatic, Improved Power Factor

Key Specifications Induction Brazing Machine

General Description:-

1- Designed to replace conventional brazing methods with flame-free and smokeless operation
2- Provides reliable, repeatable brazing with precise control
3- Brazing temperature range: 450 C 1200 C (suitable for most brazing applications)

Applications:-
a) Copper parts for compressors & transformer components
b) Brass components & soldering of brass parts
c) Submersible pump rotors
d) Ring cable lugs
e) Aluminium component joints
f) Steel component joints
g) Brazing of storage water heater elements
h) Diamond-tipped cutting tools
i) Carbide tipping of cutting tools
j) Optical frame brazing
k) Fuel pipe brazing
l) Vacuum brazing of critical components
m) Stainless steel orthodontic parts
n) Brazing stainless steel to brass
o) Rocker pins
p) Hydraulic hoses

Technical Specifications:-
Power Range
1 5 kW
5 15 kW
15 50 kW
50 200 kW

Frequency Range
5 600 kHz
1 400 kHz
1 30 kHz
1 30 kHz

Adaptation to Change in Load Characteristics Yes (all models)
Power Control
Manual (low range)
Auto (higher ranges)

Load-Sensed Self Tuning Yes (all models)

Machine Sizes (mm)
225 500 430,
530 640 1110
620 725 1370
1000 1090 1675

Input Power
Single Phase: 230V / 50Hz
Three Phase: 230V / 50Hz
Three Phase: 440V / 50Hz (mid/high range models)
