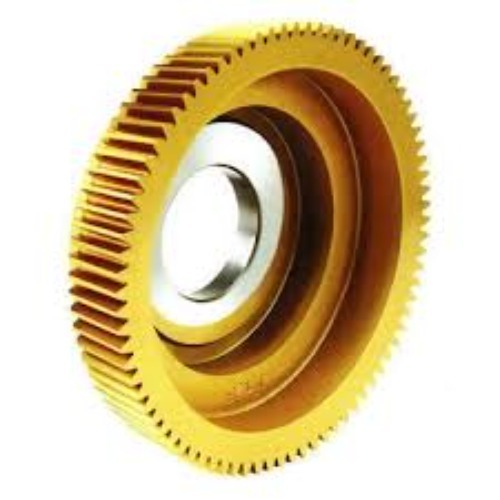

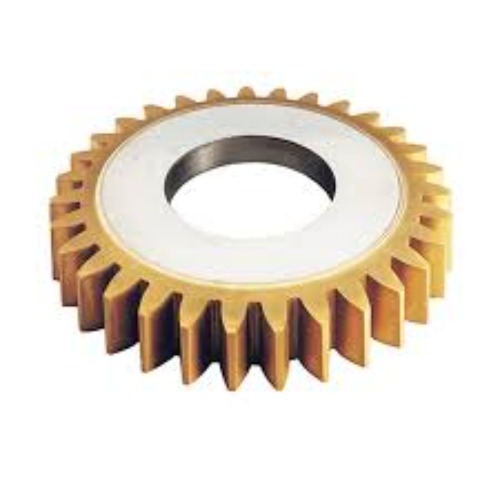

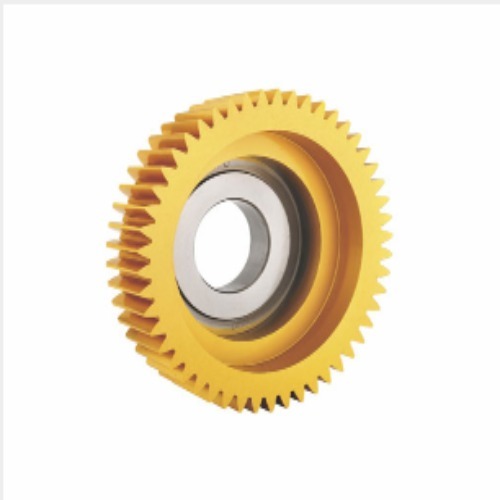

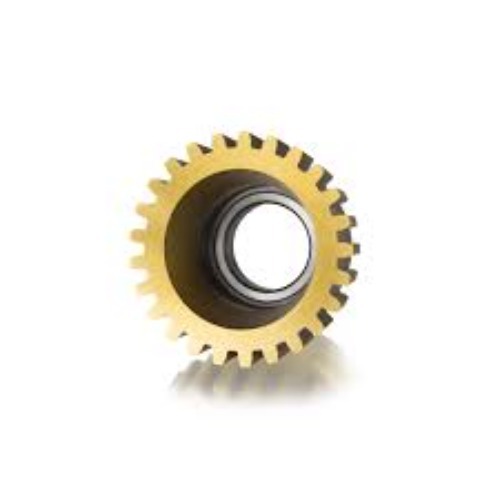

Gear Shpeer Cutters - Color: Metallic Grey / Black Oxide / Coated
Price: 11800.00 INR / Piece
(10000.00 INR + 18% GST)
Get Latest Price
MRP:
11800.00 INR / Piece
Weight :
10.00 Kilogram
1 Pack Contains :
11
Minimum Pack Size :
5
In Stock
Product Specifications
| Weight | 11 Kilograms (kg) |
| Color | Metallic Grey / Black Oxide / Coated |
| Usage | Gear Cutting, Internal & External Splines, Spur & Helical Gears |
| Width | 2.5 Inch (in) |
| Height | 2.5 Inch (in) |
| Length | 10 Inch (in) |
| Size | 1.5 - 12 |
| Product Type | CNC Machined, Precision Ground, Heat Treated |
| Gear Type | Spur Gears |
| Material | Steel |
| Processing Type | Precision Casting |
| Gear Tooth Profile | Other |
| Gearing Arrangement | Spur |
| Direction | Left Hand / Right Hand |
| Input Speed | 1000 RPM |
| Efficiency | High precision, long tool life (with coating options) |
| FOB Port | TKD |
| Payment Terms | Cash Against Delivery (CAD) |
| Supply Ability | 20 Per Month |
| Delivery Time | 5 Days |
| Sample Policy | Contact us for information regarding our sample policy |
| Packaging Details | CORRUGATED CORASIS |
| Main Export Market(s) | Middle East |
| Main Domestic Market | All India |
| Certifications | Gear shaper cutters, as specialized precision cutting tools, do not have specific product certifications. Instead, their quality and performance are assured by the manufacturer's overall quality management system and adherence to strict industry standards.Key Certifications and Quality AssurancesISO 9001 Certification: A reputable gear shaper cutter manufacturer will be ISO 9001 certified. This is the most crucial certification as it ensures that the company's entire production process is consistently managed to provide high-quality products.Dimensional and Accuracy Standards: The performance of a gear shaper cutter is defined by its compliance with international standards for dimensions and accuracy. Common standards include those from the ISO (e.g., ISO 54) and AGMA (e.g., AGMA 1104-A09, AGMA 1012). These standards define the cutter's geometry, tolerance, and quality grades, such as Class AA, A, and B, as per DIN 1829.Material Certification: The quality of a gear shaper cutter is also based on the material it is made from, such as high-speed steel (HSS) or carbide. Manufacturers will often provide a material test report to certify the material's composition and the heat treatment process used to achieve the required hardness and wear resistance. |
| Returnable | No |
| GSTIN | 18% |
| Currency | INR |
| Brand Name | GNMT |
| Price Type | fixed |
| Pkg Box Height | 2.50 inches |
| Shipping Rate | 18.00 |
| Stock Quantity | 20 |
| Pkg Box Length | 10.00 inches |
| Mop | 5 |
| Pkg Box Breadth | 2.50 inches |
| Price | 10000.00 INR (Approx.) |
| Shipping Type | order_percent |
| Packsize | 11 |
| MRP | 11800.00 INR |
| Moq | 5 |
| Product Unit | 5 Piece/Pieces |
| Unit Type | Piece/Pieces |
| Color | Metallic Grey / Black Oxide / Coated |
| Weight | 10.00 Kilogram |
| Minimum Ordered Packs | 5 |
| Minimum Order Quantity | 5 |
Product Overview
Key Features
Processing Type: CNC Machined, Precision Ground
Module: 1.5 TO 10
Pressure Angle: 14.5 / 20 / 22.5 (as required)
Tooth Profile: Involute, Standard / Modified
Direction: Left Hand / Right Hand
Type: Disc Type / Hub Type / Shank Type
Outside Diameter (OD): As per module & standard design
Number of Teeth: Customized as per gear specification
Coating (Optional): TiN / TiAlN for extended tool life
Hardness: 62 64 HRC
Surface Finish: Ground & Polished
Accuracy: Class A / Class B (as per DIN / ISO standards)
Weight: Approx. 26 kg (depends on OD & design)
Application: Internal & External Gear Shaping, Spur & Helical Gears, Splines
Product Type: Gear Shaper Cutter
