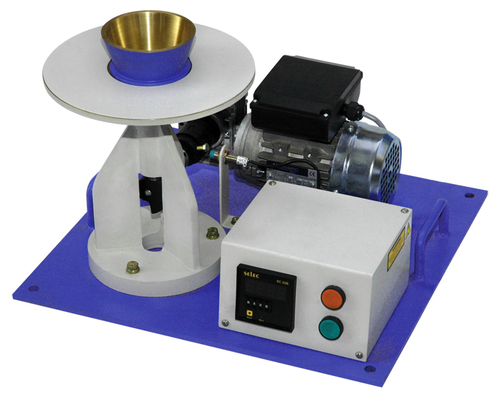

Flow Table Motorized - Brass And Cast Iron, 76.2cm Diameter | 180w Power, Cement Testing Equipment, Electrically Operated

Flow Table Motorized: MTCT-07A

The flow table determining the flow of Portland cements concrete. Consists of flow table a top 76.2cms (30) dia finely machined from solid brass/gunmetal casting. The stand is fabricated out of cast iron/mild steel and is of study construction. The ground and hardened steel cam is designed to drop the table by 12.5 mm. complete with flow mould with handles with one tamping rod 0-60cms long X 16 mm dia. Electrically operated to raise and drop the table top.


Technical Specification
Power W 180
Electrical 1 phase / 200 watts
Consists of a steel table top 76.2cm (30 inch.dia) finely machined
The integral cast ribs are designed for support and strength
The stand is fabricated out of cast iron and is study construction
Holes for mounting in foundations are drilled in the base plate
The ground and hardened steel cam is designed to fit and drop the table by 12.5mm
Electrically operated to raise and drop the table top approx 15 times in 15 second
Suitable for operation 230 volts 50 cycles A.C. supply
