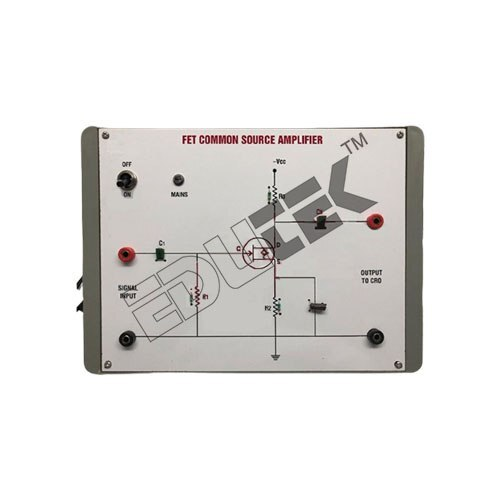

Fet Common Source Amplifier - Application: Engineering Electronics Instruments
Price: 1200.00 INR / Piece
(1200.00 INR + 0% GST)
Get Latest Price
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Color | Green PCB with black/blue and white components |
| Features | Soldered trainer circuit, easy observation, accessible test points |
| Power Source | External DC adapter |
| Output | Amplified analog signal |
| Operating Temperature | 0C to 50C |
| Interface | Banana sockets for input/out |
| Components | FET (typically JFET), resistors, capacitors, terminal blocks, PCB |
| Power Supply | External DC supply |
| Thermal Conductivity | Standard for epoxy PCB |
| Input | Low-level analog signal |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| IP Rating | Not rated |
| Response Time | Low-latency, suitable for analog signal up to MHz |
| Product Type | FET COMMON SOURCE AMPLIFIER |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 12V DC |
| Supply Voltage | 12V DC |
| Size | Standard Trainer Size |
| Dimension (L*W*H) | Approx. 130 x 120 x 40 mm |
| Function | Signal amplification using FET in common source configuration |
| Weight | Approx. 70 grams |
| Capacity | Single Channel |
| Thickness | Approx. 1.5 mm (PCB) |
| Current Rating | ~10-20 mA |
| Frequency | Up to 1 MHz (application dependent) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Unit Type | Piece/Pieces |
| Price Type | fixed |
| Returnable | No |
| Currency | INR |
| Brand Name | EDUTEK |
| Mop | 1 |
| Stock Quantity | 5 |
| Moq | 1 |
| Price | 1200.00 INR (Approx.) |
| Color | Green PCB with black/blue and white components |
| Product Unit | 1 Piece/Pieces |
| Packsize | 1 |
| Minimum Ordered Packs | 1 |
| Minimum Order Quantity | 1 |
| GSTIN | 0% |
Product Overview
Key Features
FET COMMON SOURCE AMPLIFIER
Scope of Learning:
To study the theoretical analysis of FET Amplifier To study and measure the frequency response of FET Amplifier To measure various parameters of FET Amplifier and compare them theoretically To observe the output of FET Amplifier in cutoff regions
Technical Specifications:-
DC power supply: 12V DC
Mains supply: 230V 10%, 50Hz
