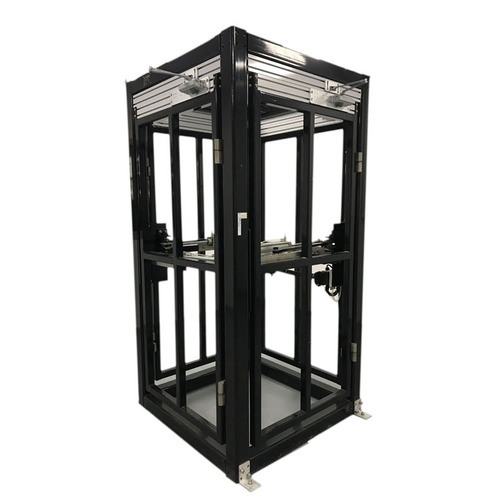

Door Closer Durability Test Machine - Color: Black

Test equipment function: The Door closer cycle test machines are designed for durability test of different types of door closer. It can be easily set to test standard arm, parallel arm, and concealed mounting door closer.The test doors are actuated by air cylinder and monitor and sensor. And test door mass, opening speed, closing speed and door opening angle can be adjusted according to power sizes as EN, BHMA standard required. The equipment includes multiple stations and individual control. If door closer failed, the equipment can stop contain test door automatically. The equipment includes a touch screen to set, control and display the test cycles. Specification: Frame: Heavily duty steel tube and baking finish Test door 4 test doors 40kg other door mass can be applied by user's Equipment size: L1.3mXW1.3 mX H2.6m aa) Operation space: 3.5mx3.5mx2.6m bb) Test door size 916mmx 2000mm cc) Door opening angle: 0~90A 5A (adjustable) dd) HMI: 7 touch screen, ee) Test standards: EN 1154, ANSI/BHMA A156.
