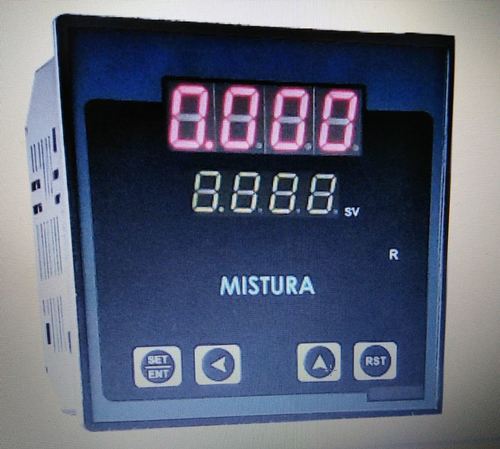

Digital Programmable Counter - Plastic, 96x96x50 Mm | Black Color, Auto Control Mode, 230v Ac Power Supply

DIGITAL PROGRAMMABLE COUNTER -
MODEL
1) PC - 9612
Size - 96x96x50
2) PC - 7212
Size - 72x72x85
Display - Upper : 7 segment, 4 digit, 0.56", RED LED display - Process Value
Lower : 7 segment, 4 digit, 0.4", GREEN LED display -
Set value
3) PC - 4812
Size - 48x48x95
Display - Upper : 7 segment, 4 digit, 0.4", RED LED display - Process Value
Lower : 7 segment, 4 digit, 0.3, GREEN LED display -
Set value
INPUT - Input Signal : NPN / PNP Proximity switch / Micro switch /(Configurable) / 230V AC Pulse / Encoder (Factory Set)
OUTPUT -
2 - Relay (1 C/O, 5A, 230V AC) / SSR (12 V DC approximately (Optional) (FactorySet
SPECIFICATION -
Auto time - 0 - 99.9 sec (Configurable)
Count direction - UP / DOWN (Factory Set)
Set point - 1 - Set point
Reset Facility - Auto / Manual reset facility / reset at back facility
Power Supply - 230V AC 10%, 50Hz (linear power supply)
Indication - LED for Relay Status Indication
Enclosure Material - Plastic
Operating Ambient Temp - 0 C to 55 C
Relative Humidity - Upto 95% RH Non Condensing
