Black Digital Length Counter

DIGITAL LENGTH COUNTER (With Dual Encoder Input) -
MODEL
1) LC - 9611
Size - 96x96x50 mm
Display - Upper : 7 segment, 6 digit, 0.56", RED LED display - Meters
Lower : 7 segment, 4 digit, 0.4", GREEN LED display Meters Per Minute

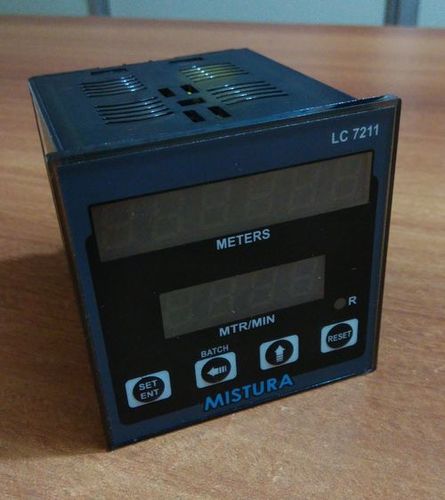

2) LC - 7211
Size - 72x72x85 mm
Display - Upper : 7 segment, 6 digit, 0.4, RED LED display - Meters
Lower : 7 segment, 4 digit, 0.4", GREEN LED display Meters Per Minu
3) LC- 4811
Size - 48x48x95 mm
Display - Upper : 7 segment, 4 digit, 0.3, RED LED display - Meters
Lower : 7 segment, 4 digit, 0.3, GREEN LED display - Meter Per Minute
RANGE - 0-99999.9 / 0-999999 Meter (Configurable)
INPUT
Input Signal - NPN / PNP Proximity switch (Configurable) / Encoder (Configurable)
OUTPUT -
Control Output - 1 Of 2 - Relay (2 C/O, 5A, 230V AC)
SSR (12 V DC approximately
SPECIFICATION -
Set Point - Single Set Point
Diameter Range - 0 - 9999.99 mm
Auto Time - 99.9 sec
Length measurement - Facility to feed diameter length, 0-9999.99 mm diameter range.
Reset Facility - Auto / Manual Reset facility & Front & Back Reset Available
Power Supply - 230V AC 10%, 50 Hz (linear power supply)
Indication - LED for Relay Status Indication
Enclosure Material - Plastic
Operating Ambient Temp - 0 C to 55 C
Relative Humidity - Upto 95% RH Non Condensing
