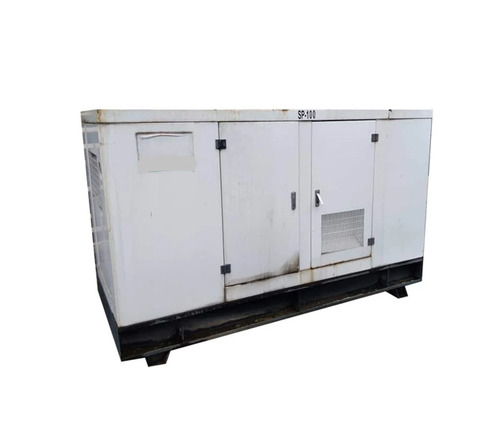

Diesel Generator

Diesel Generator - Robust Engine Performance, 8-138 Kvae Power Ratings | High-end Quality Components, Continuous Power Supply, Efficient Fuel Consumption

Price:

Get Latest Price

In Stock

Product Specifications

Power Rating	8-138 kVA
Engine Manufacturer	Mahindra
Cooling System	Water cooled
Alternator Type	Brushless
Enclosure Type	IP23
Noise Level	75dBA
Fuel Type	Diesel
Features	Reliable power, Fuel efficient, Durable design, Long lifespan, Easy maintenance, Versatile use, Robust construction

Product Overview

Key Features

Being client centric organization, our company is instrumental in manufacturing, supplying and exporting of Diesel Generator. We source high-end quality components and engine parts from reliable vendors to manufacture these generators in compliance with industrial standards. These generators require less fuel and capable to continuous perform their function long period of time. Widely used in diverse areas for regular power supply, our Diesel Generator is highly demanded among our clients due to their robust construction and impeccable strength.

Generator Set Specifications
Standard power rating kVAe (kWe)	8(6.6)	11(8.8)	17(13.2)	22(17.6)	28(22)	33(26.4)	44(35.2)	55(44)	69(55.2)	91(72.6)	110(88)	138(110)
Continuous power rating kVAe(kWe)	7.5(6.6)	10(8)	15(12)	20(16)	25(20)	30(24)	40(32)	50(40)	62.5(50)	82.5(66)	100(80)	125(100)
Maximum load, Amperes	11	15	23	31	38	46	61	77	96	127	153	192
Rated load, Amperes	10	14	21	28	35	42	56	70	87	115	139	174
Power Factor	0.8
Engine Specifications
Manufacturer	Mahindra & Mahindra Ltd
Engine Model	2185 GM	2185 GM	3255 GM	3305 GM	4375 GM	4445 TC GM	4575 TCI GM	4725 GM	4905 GM	61145 GM	61375 GM	61695 GM
No. of Cylinders	2	2	3	3	4	4	4	4	4	6	6	6
Aspiration	Naturally Aspirated					Turbo Charged					Turbo Charged After cooled
Cooling System	Water cooled with Radiator
Displacement litres	1.36	1.36	1.89	2.05	2.73	2.73	2.73	3.19	3.53	5.86	5.86	5.86
Bore, mm	88.9	88.9	88.9	88.9	88.9	88.9	88.9	94	96	96	96	96
Stroke, mm	110	110	101.6	110	110	110	110	115	122	135	135	135
Rated rpm	1500
Max. Engine Power, HP @ rated rpm	18	18	25	30	37	44	57	72	90	114	137	169
Rated Engine power, rated rpm	16	16	23	27	33	40	51	65	81	104	125	154
Governor type, Class of Governing	Mechanical, A1 class									Mechanical-A1 Class/Electronic-A0 class(Optional)
Air cleaner type	Dry Type
Lube oil specifications	SAE, CF4 15W40
Starting system, volts	12V, Electrical
Battery capacity, Ah	120Ah									140Ah
Fuel	High Speed Diesel
Overload Capacity	Provision of 10% overloading is applicable as per ISO 8528-1:2005(E)
Fuel Consumption, litres/hour	1.6	1.9	2.5	3.4	4.2	5.2	6.9	8.3	10.3	13.4	16.3	20.1
Alternator Specifications
Make	Mahindra/Leroy Somer
Type	Brushless, Single bearig, Self-exciting
Voltage, Volts	230(1 phase)/415 (3 phase)			415 (3 phase)
Rpm/Frequency, hz	1500/50
Voltage Regulation	+1%
Enclosure Type	IP 23
Class of Insulation	H Class
Control Panel	Standard Manual control panel with Digital controller (AMF panel-As per specific requirement/application)
Acoustics Specifications
Acoustics Enclosure(Canopy)	Made from specially procured CRCA sheet using CNC machines for precision fit & finish, powder coated
Noise level,dB	75 1 meter distance (as per the stringent testing guidelines of Central Pollution Control Board, India
Exhaust Silencer	Inside Canopy					Outside Canopy
Length, mm	1800		2150		2500	2500		3495		4000
Width, mm	900		1030		1030	1030		1150		1200
Height, mm	1405		1350		1400	1400		1450		2180
Weight, kg	750	800	850	900	1000	1050	1100	1200	1250	2370	2400	2460
