Core Shooting Machine & Shell Molding Machine Vertical - 500x400x250 Mm Core Box, 15-25 Kg Blowing Capacity | Fast Molding, Auto Core Removal, Durable, Lpg/electric Heating
Get Latest Price
In Stock
Product Specifications
| Core Box Size | 500X400X250 Mm |
| Max. Core Size | 420X380X200 Mm |
| Operation Mode | Manual/Auto |
| Production Speed | 40-70 Sec/Cycle |
| Heating Type | Lpg/Electrical |
| Blowing Capacity | 15-25 Kgs |
| Weight | 4300 Kgs |
| Features | Fast Molding, Easy Operation, Durable Design, Automatic Core Removal, High Production, Minimal Maintenance, Small Core Capability |
Product Overview
Key Features
We are offering our customers a wide range of Core Shooting Machine & Shell Molding Machine Vertical - KKD Series with following features :
1. Sand blowing is made by special designed blowing tank.
2. Sand tank travels fast and stable with proper cushion.
3. Small and thin cores can be made by this machine.
4. Install loose pieces and slide, difficult drawn core can be made in our machine.
5. Core can be removed automatically by ejector and conveyer.
6. Core box and shell mold change is easy and fast.
7. Machine is durable. Very few numbers of consumption parts are required.
8. Maintenance is easy and minimal
Technical specifications :
1. Core Box Size (L x H x W): 500 x 400 x 250 mm
2. Max. Core Size (L x H x W): 420 x 380 x 200 mm
3. Operation Mode: Manual/Single Cycle/Auto Cycle
4. Production Speed: 40 ~ 70 seconds/cycle, depends on size and shape of products
5. Heating Type: LPG or Electrical
6. Max. Blowing Capacity: 15-25 kgs
7. Sand Storage Capacity: 200-300 kgs
8. Operation Pressure: 5-6 kgs/cmA
9. Sand Blowing Pressure: 1-4 kgs/cmA
10. Weight: 4300 kgs
11. Dimension: 2100 x 5000 x 3100 mm
1. Sand blowing is made by special designed blowing tank.
2. Sand tank travels fast and stable with proper cushion.
3. Small and thin cores can be made by this machine.
4. Install loose pieces and slide, difficult drawn core can be made in our machine.
5. Core can be removed automatically by ejector and conveyer.
6. Core box and shell mold change is easy and fast.
7. Machine is durable. Very few numbers of consumption parts are required.
8. Maintenance is easy and minimal
Technical specifications :
1. Core Box Size (L x H x W): 500 x 400 x 250 mm
2. Max. Core Size (L x H x W): 420 x 380 x 200 mm
3. Operation Mode: Manual/Single Cycle/Auto Cycle
4. Production Speed: 40 ~ 70 seconds/cycle, depends on size and shape of products
5. Heating Type: LPG or Electrical
6. Max. Blowing Capacity: 15-25 kgs
7. Sand Storage Capacity: 200-300 kgs
8. Operation Pressure: 5-6 kgs/cmA
9. Sand Blowing Pressure: 1-4 kgs/cmA
10. Weight: 4300 kgs
11. Dimension: 2100 x 5000 x 3100 mm
Company Details

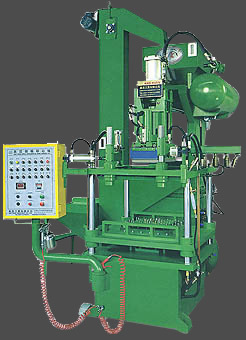

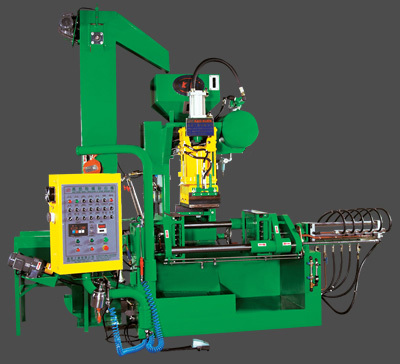

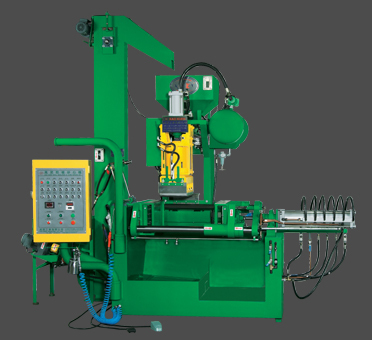

Kao Kuen Ind. Co., Ltd., Established in 1990 at Taiping City in Taichung Hsien, is a leading Exporter,Supplier,Trading Company of Machineries in Taiwan. Kao Kuen Ind. Co., Ltd. is one of Trade India's verified and trusted sellers of listed products. With extensive experience in supplying and trading Core Shooting Machine & Shell Molding Machine Vertical - KKD Series, Kao Kuen Ind. Co., Ltd. has made a reputed name for itself in the market with high-quality Core Shooting Machine & Shell Molding Machine Horizontal - KKE Series, Core Shooting Machine & Shell Molding Machine Vertical - KKB Series, Core Shooting Machine & Shell Molding Machine Vertical - KKC Series, etc.
