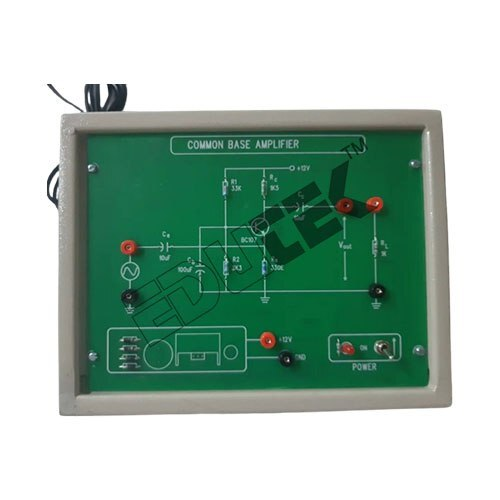

Common Base Amplifier - Application: Engineering Electronics Instruments
Price: 1200.00 INR / Piece
(1200.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Input | Low-level AC signal |
| Operating Temperature | 0C to 50C |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Components | Transistor, capacitors, resistors, connectors |
| Response Time | Microseconds range |
| Thermal Conductivity | Standard for PCB |
| Power Supply | External DC power supply |
| Output | Amplified signal |
| Power Source | DC power supply |
| Features | Demonstrative circuit design, easy component layout, ready to use |
| Color | PCB Green |
| IP Rating | Not rated |
| Interface | 2-pin terminal for power, 2-pin terminal for input/output |
| Product Type | COMMON BASE AMPLIFIER |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 12V DC |
| Supply Voltage | 9-12V DC |
| Size | Standard PCB module |
| Dimension (L*W*H) | 100mm x 60mm x 20mm |
| Function | Amplification of weak signals |
| Weight | Approx. 100g |
| Capacity | Single transistor stage |
| Current Rating | Approx. 10mA |
| Thickness | 1.6mm (PCB) |
| Frequency | Up to 1 MHz |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Color | PCB Green |
| GSTIN | 0% |
Product Overview
Key Features
COMMON BASE AMPLIFIER
This unit consists of a power supply +15V,@300mA.
The circuit is constructed in common base mode to find the frequency response of the amplifier.
