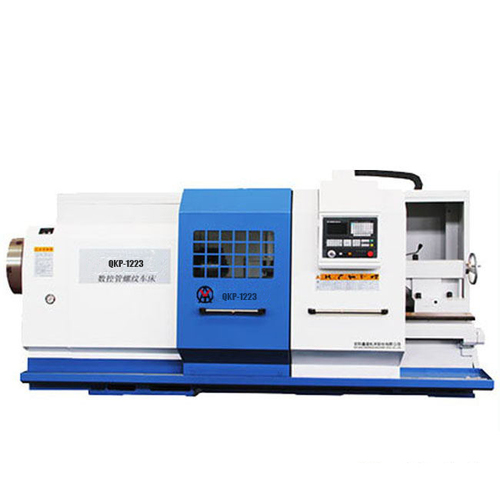

Cnc Pipe Threading Machine By Anyang Xinshegn Machinery Trade Co., Ltd

Our range of QKA-series CNC Pipe Threading Machine were developed mainly for the turning of oil-field pipe threads. But now they are also used to the turning of pipe threads of various kinds, e.g. cylindrical and conical threads, threads connected continuously one another, and end-face threads as well, and they can also be used as universal CNC lathes for the turning of circumgyration bodies of various curving generatrices. These machine are suitable for verified work-pieces machining in medium and small batches, and are of good flexibility, high efficiency, finishing up with good conformity, and are easy to program, simple to operate. So they ate ideal medium-type mechanical machining equipment.
Item unit QKA1212 QKA1219
Swing over bed mm 770 770
Swing over carriage mm 480 480
External diameter of pipes mm 120 190
Maximum length of workpiece mm 1500(750/1000/2000/3000) 1500(750/1000/2000/3000)
Maximum turning length mm 1350(550/800/1800/2800) 1350(550/800/1800/2800)
Span of guideway mm 550 550
Spindle nose C15 C15
