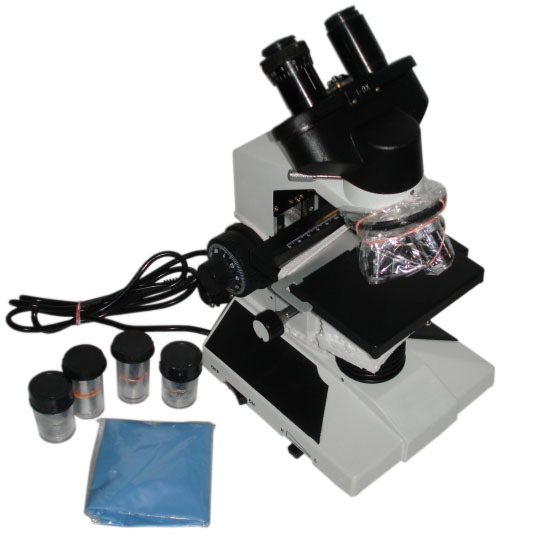

Binocular Microscope - Coarse Adjustment Range: 15 Mm Travel Approximately.

Binocular Microscope - Coarse Adjustment Range: 15 Mm Travel Approximately.

Price:

Get Latest Price

Minimum Order Quantity :

1 Piece

Brand Name :

Edutek

In Stock

Product Specifications

Spare Parts	Eyepiece, objectives, bulb, fuse, stage clips available as spares.
Product Type	Binocular Microscope
Features	Wide field eyepieces, precise focusing, sturdy construction, anti-fungal optical coatings.
Material	Mild Steel
Application	Research Microscope
Focus System	Coarse and fine coaxial focusing system.
View Head	Binocular, 360 rotatable.
Usage	Laboratory
Theory	Other
Drawtube	Other
Sensor	Not applicable (optical microscope).
Resolution	N/A (visual optical resolution dependent on eyepiece and objective combination).
Interface	Not applicable (standard optical use); optional camera port available in some models.
Frame Rate	N/A for standard optical use; camera optional.
Focal Distance	Working distance varies, typically 7.6 mm with 40x objective. Millimeter (mm)
Magnification	40X to 1000X (with standard objectives and eyepieces).
Dimensions	Approx. 360 x 280 x 180 mm (H x L x W). Millimeter (mm)
Focus Range	Coarse and fine adjustments available; range typically 15 mm for coarse. Millimeter (mm)
Eyepieces	Wide field 10X (WF10x) paired eyepieces.
Eyepiece Tube	Binocular, inclined 45 , 360 rotatable.
Illumination	LED or halogen bulb, built-in, adjustable brightness.
Coarse Adjustment Range	15 mm travel approximately.
Fine Adjustment Range	0.002 mm per graduation, precise focusing.
Working Stage	Mechanical stage 125 x 115 mm with x-y movement. Square Millimeter (mm2)
Still Image Capture Resolution	N/A unless optional camera attached.
Video Capture Resolution	N/A unless optional camera attached.
Image Format	N/A (visual observation); optional camera supports JPG/PNG.
Interpupillary Distance	55-75 mm adjustable. Millimeter (mm)
Objective Achromatic	4X, 10X, 40X (spring), 100X (spring, oil immersion) included.
Condenser	Abbe condenser, N.A. 1.25, with iris diaphragm and filter holder.
Light Source	LED or halogen lamp, 220V/110V AC.
Payment Terms	Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA), Cash in Advance (CID)
Sample Available	No
Sample Policy	Sample costs shipping and taxes has to be paid by the buyer
Packaging Details	carton box, export quality also available
Main Export Market(s)	Asia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market	All India
Certifications	ISO 9001, 14001 ,CE
