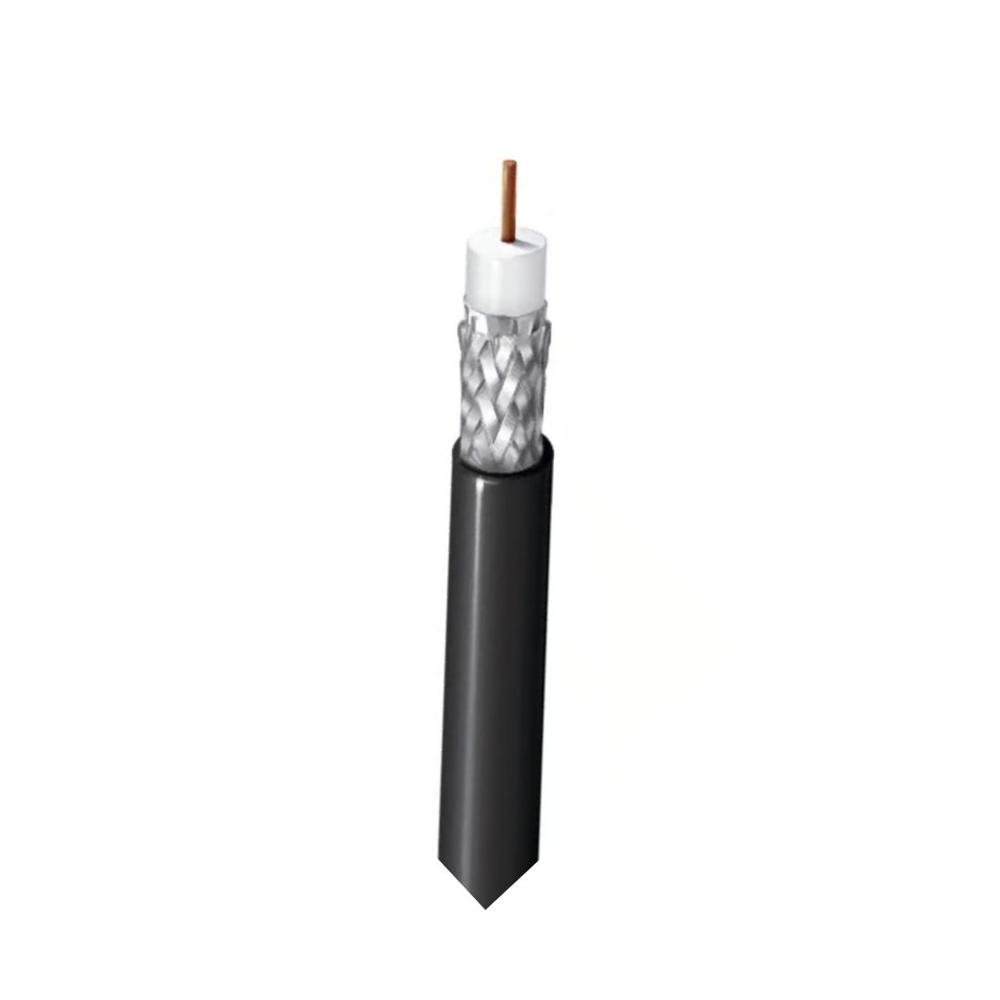

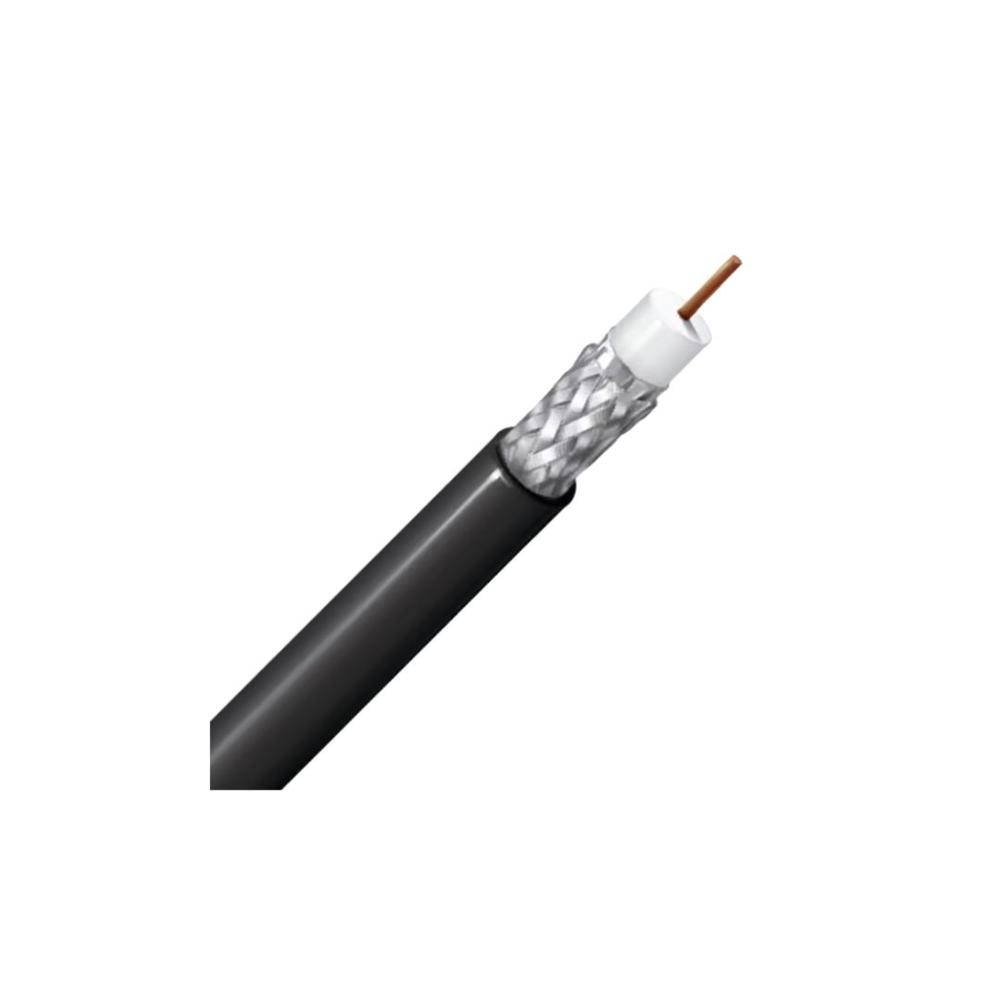

Belden 1694a - 75 Ohm Sdi Coax Rg-6, 18 Awg Solid Bare Copper Conductor, Pe Insulation With Foil + 95% Tinned Copper Braid Shield, Pvc Jacket Cmr

Belden 1694a - 75 Ohm Sdi Coax Rg-6, 18 Awg Solid Bare Copper Conductor, Pe Insulation With Foil + 95% Tinned Copper Braid Shield, Pvc Jacket Cmr

Price: 90.0 INR / Meter

Get Latest Price

Minimum Order Quantity :

100 Meter

Brand Name :

Belden

In Stock

In Stock

Product Specifications

Impedance75 Ohm
Diameter6.15 mm (0.242 in)
Tensile StrengthMin. 267 N (60 lbf)
Weight49 kg/km approx.
Conductor ShapeRound
FeaturesHigh-definition 4K UHD transmission, low signal loss, precision video cable, 18 AWG solid bare copper conductor
Usage & ApplicationsBroadcast, studio, post-production, communications, digital video
Dielectiric Strength4500 V RMS
Rated Temperature-20AdegC to +60AdegC
Core NumberSingle Core
InsulationFoam HDPE
Number of Conductor1
Conductor TypeSolid
Core MaterialCopper
Install TypePermanent and mobile installations
Cable TypeCoaxial Cable
Operating Temperature-20AdegC to +60AdegC
Armored MaterialNot Armored
Product TypeCoaxial Video Cable
LengthBelden 1694A cables are available in standard and custom lengths
VoltageOther, Maximum Operating Voltage: 500 V RMS
Insulation MaterialOther, Gas-injected Foam High-Density Polyethylene (FHDPE)
ApplicationOther, Broadcast video, HDTV, SMPTE 292M, SDI, CCTV, AES/EBU digital audio, RF transmissions
Conductor MaterialOther, Solid Bare Copper
Jacket MaterialOther, PVC (Polyvinyl Chloride)
Storage Temperature-40AdegC to +75AdegC
Connector ColorNot Applicable (Cable Only)
Shield MaterialTinned Copper Braid with Aluminum Foil
Jacket ColorBlue
Dimension (L*W*H)Diameter: 6.15 mm (0.242 in); Length: As specified
MaterialCopper, FHDPE, PVC
ColorBlue
Size18 AWG
Main Domestic MarketAll India

Company Details

P&S Innovation is a company run and managed by professionals, renowned in the automation industry in their respective area of expertise. We are based in the city of Noida, U.P. (India) and we serve clients across the country. We started adapting to the emerging markets and the latest trends in the Industrial Automation Industry. Thus we introduced Automation products such as DC drives, VFDs, Sensors, Encoders, PLCs, HMIs, Industrial Safety products, Industrial Cables & Wires, Ethernet Switches & Protocols Converters etc. and positioned ourselves as One Stop Source for most of the Industrial Automation products. Evolving further we expanded in providing Customized Automation Solutions based on the above products for all Verticals & Industries covering System Integrator, Automotive, Food & Beverages, Engineering, HVAC, Plastics, Steel, Power, Cement, Railways, Oil & Gas, Paper, Printing, Packaging, Chemicals & the latest entrant Solar Power Industry. The list is endless & ever expanding.We are suppliers, traders, service providers for Industrial Automation Products and Control Components. P&S Innovation also provides professional engineers / Technical Manpower services to our clients which includes Industrial Automation & Engineering Sector etc. In todays competitive world, time and cost have become important aspects of recruitment for every organization. we can help our clients in saving these when it comes to the selection & recruitment for the right people. Our goal is to provide the best in class services & solutions to our customers. Our Team Has Succeeded In Understanding The Needs Of The Industry And Creating Reliable Products & Resources To Serve Them All.

Business Type

Exporter, Importer, Manufacturer, Supplier

Employee Count

20

Establishment

2020

Working Days

Monday To Sunday

GST NO

09AAYFP6340G1ZO

Certification

ISO 9001:2018
