Automatic 3d Triangle Wound Core Coil Winding Machine
Automatic 3d Triangle Wound Core Coil Winding MachineAutomatic 3d Triangle Wound Core Coil Winding MachineAutomatic 3d Triangle Wound Core Coil Winding MachineAutomatic 3d Triangle Wound Core Coil Winding MachineAutomatic 3d Triangle Wound Core Coil Winding MachineAutomatic 3d Triangle Wound Core Coil Winding Machine

Automatic 3d Triangle Wound Core Coil Winding Machine

Price: 10000 USD / Unit

Get Latest Price

Minimum Order Quantity :

1 Unit

In Stock

In Stock

Product Specifications

Product TypeAutomatic 3D Triangle Wound Core Coil Winding Machine
General UseTransformer Coil Manufacturing
MaterialOther, Stainless Steel / Mild Steel
TypeOther, Fully Automatic Winding Machine
Weight (kg)1500-1800 kg
ComputerizedYes
AutomaticYes
Control SystemPLC with Touch Screen Interface
Power SourceElectric
Power Consumption5-7 kW
Coil Diameter50 - 300 mm
Winding HeadOther, Single / Triple
Winding SpeedMax 120 RPM
Winding SpindleOther, Hardened Alloy Steel
Air Pressure0.5-0.8 MPa
Drive TypeOther, Servo Motor
Voltage380V / 415V, 50/60Hz
Dimension (L*W*H)2600 x 1800 x 1800 mm
FeatureOther, Energy Efficient, High Precision Winding, User-Friendly Operation
ColorBlue / White
Supply Ability10 Per Month
Delivery Time60 Days

Product Overview

Key Features

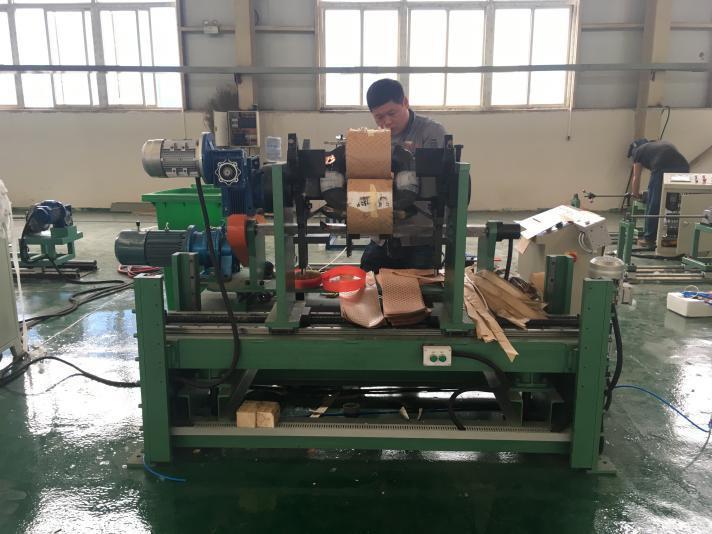

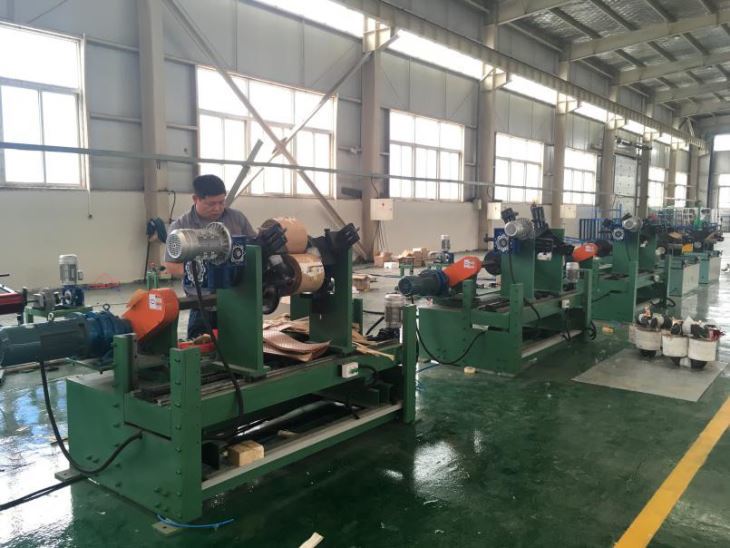

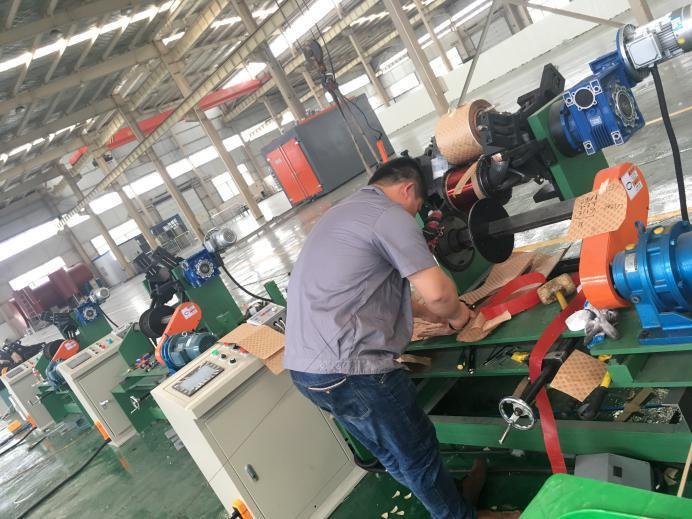

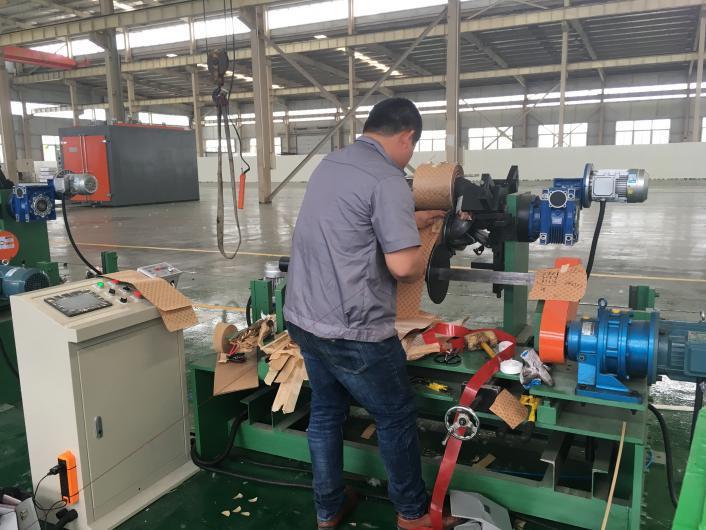

Application: JTR-1600 automatic 3D wound coil winding machine can winding 3D triangle core coil for S13 transformer. This machine is reasonable in design and simple in structure. This equipment mainly consists of winding main machine, gear mold, electric control system and wire decoiler. Main...

Company Details

We are specialized in the transformer assembly production and passed the GB / T9001-2008-ISO9001: 2008 quality management system. And develop, cooperate with some university and research unit. We develop and design multi-function NC swing cutting machine, NC center limb cutting machine, NC transverse cutting machining swing shearing cutting machine, Car parts cutting machine, Second parts NC transverse cutting machine, etc.We obtained 5 patents along with independent intellectual property rights; the series produces are provincial and Min

Business Type

Exporter, Manufacturer, Distributor, Supplier, Trading Company

Employee Count

130

Establishment

1995

Working Days

Monday To Friday

Payment Mode

Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
