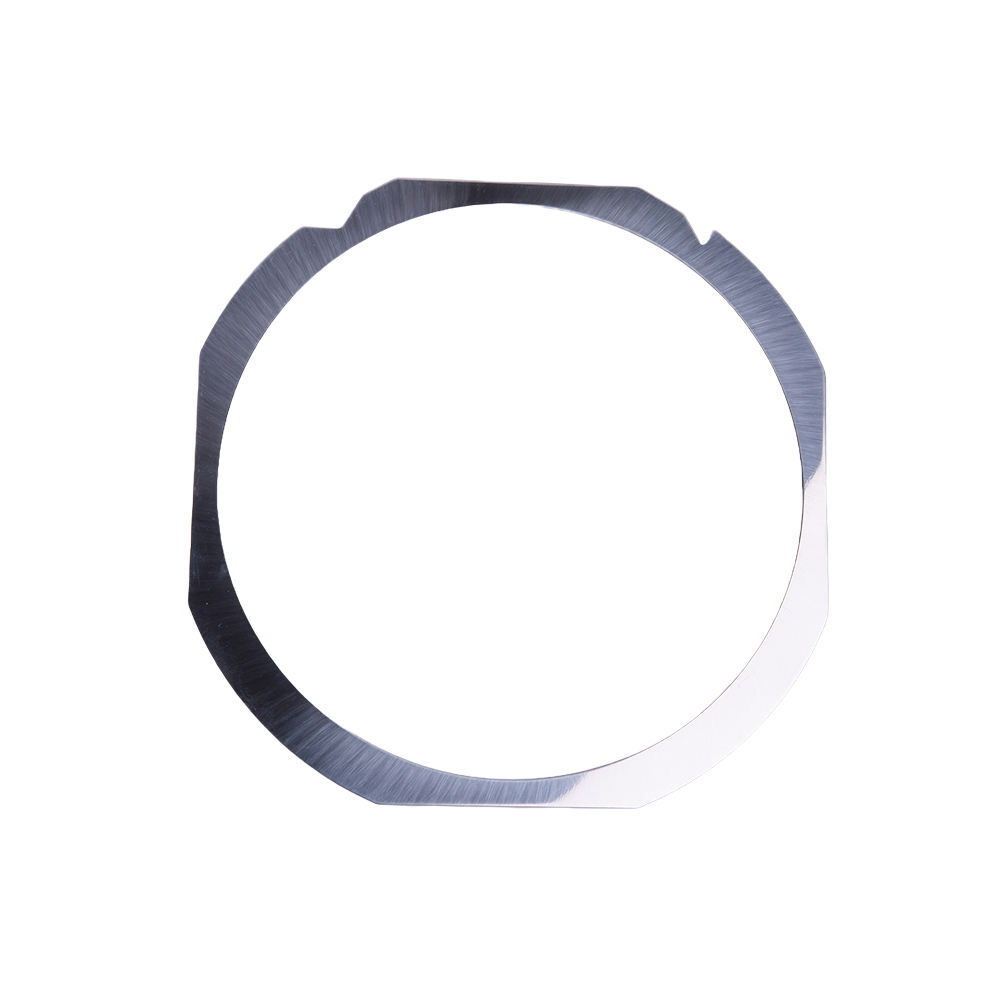

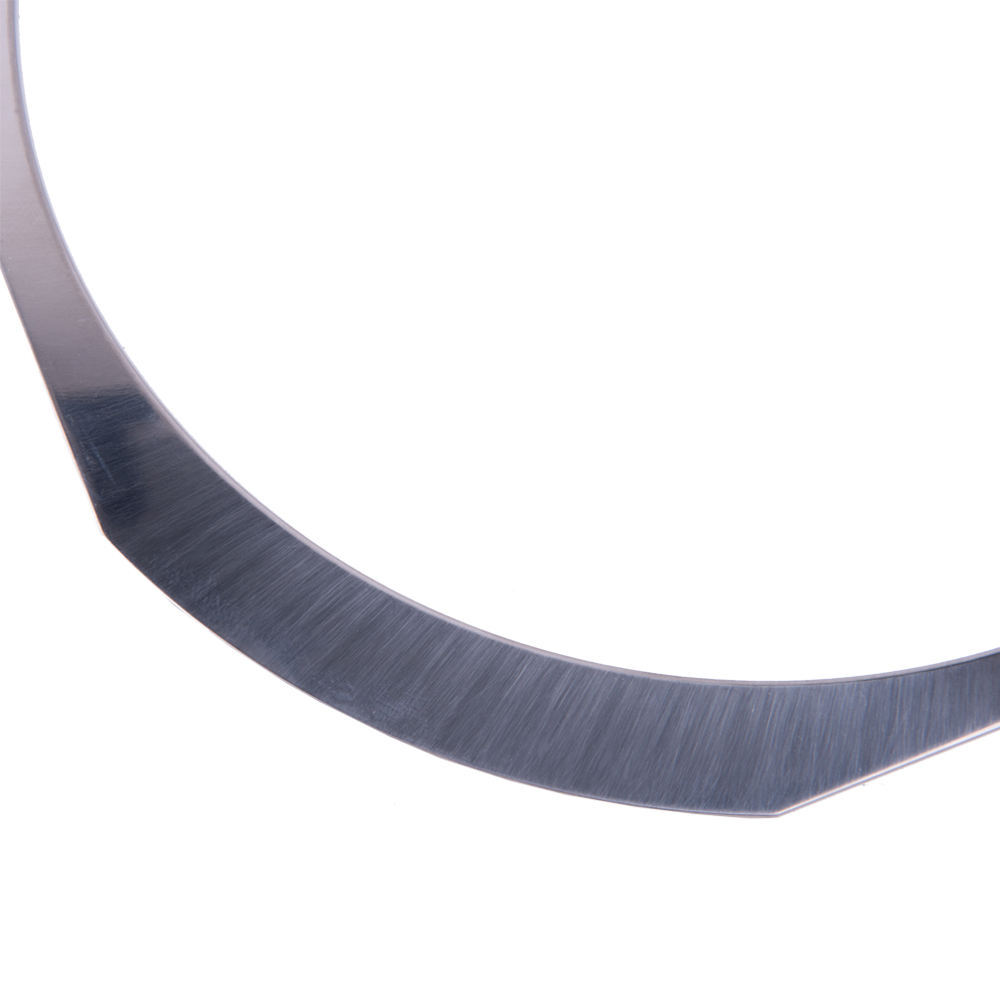

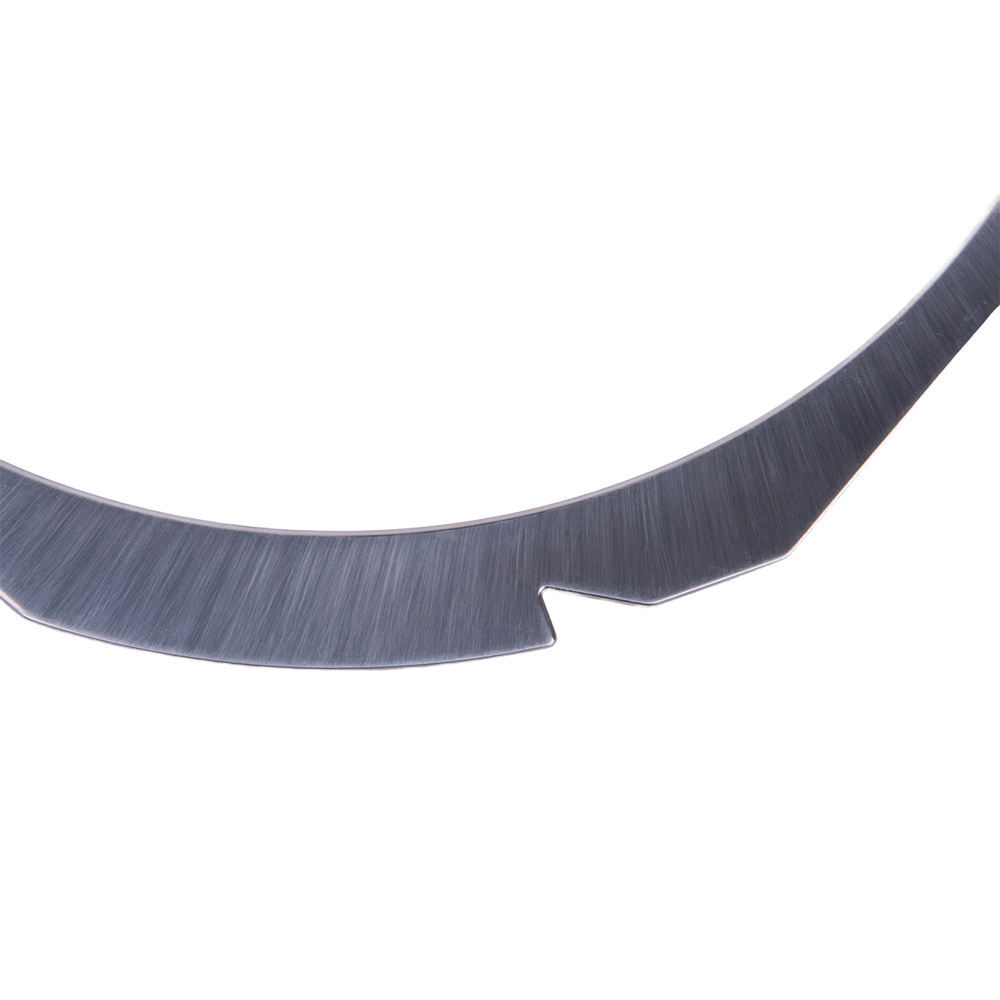

Wafer Ring Frame

Wafer Ring Frame

Get Latest Price

Minimum Order Quantity :

10

In Stock

In Stock

Product Specifications

Operating TemperatureWide range; suitable for typical clean room and processing environments
Thermal ConductivityHigh, depending on metal used (typically SUS or aluminum alloy)
FeaturesPrecision cut, smooth edge, corrosion resistant, compatible with automatic systems
ComponentsWafer frame ring
UsageSemiconductor manufacturing and wafer handling
Product TypeWafer Ring Frame
ApplicationIC packaging, wafer dicing, and wafer mounting process
SizeVaries (commonly designed for 8-inch, 12-inch wafers, etc.)
Dimension (L*W*H)Customizable based on wafer size/diameter
FunctionTo securely hold and support semiconductor wafers during processing and handling
ColorMetallic/Silver
WeightLightweight (varies based on size and material)
CapacitySingle wafer per frame
ThicknessTypically 0.1 mm to 1 mm (varies by model)
Payment TermsCash in Advance (CID)
Supply Ability500 Per Month
Delivery Time2-5 Days
Main Export Market(s)Asia

Company Details

YJ Stainless Ltd. is a trusted manufacturer and supplier of high-quality wafer handling and storage solutions, dedicated to meeting the precision requirements of the semiconductor, electronics, and research industries. With a strong commitment to quality, innovation, and customer satisfaction, we manufacture and supply a comprehensive range of products, including Wafer Storage Box, Wafer Frame Storage Box, Wafer Tweezers, Expander Ring, and many other precision-engineered accessories for wafer handling applications. Our products are manufactured using premium-grade materials and advanced production techniques to ensure exceptional durability, dimensional accuracy, contamination-free handling, and long-lasting performance. Supported by modern manufacturing facilities and a skilled team of professionals, we maintain

Business Type

Exporter, Manufacturer, Supplier

Employee Count

55

Establishment

1985

Working Days

Monday To Friday

Payment Mode

Online Payments (NEFT/RTGS/IMPS), Cheque/DD

Certification

ISO 45001 & 14001 Certified、BSI 9001
