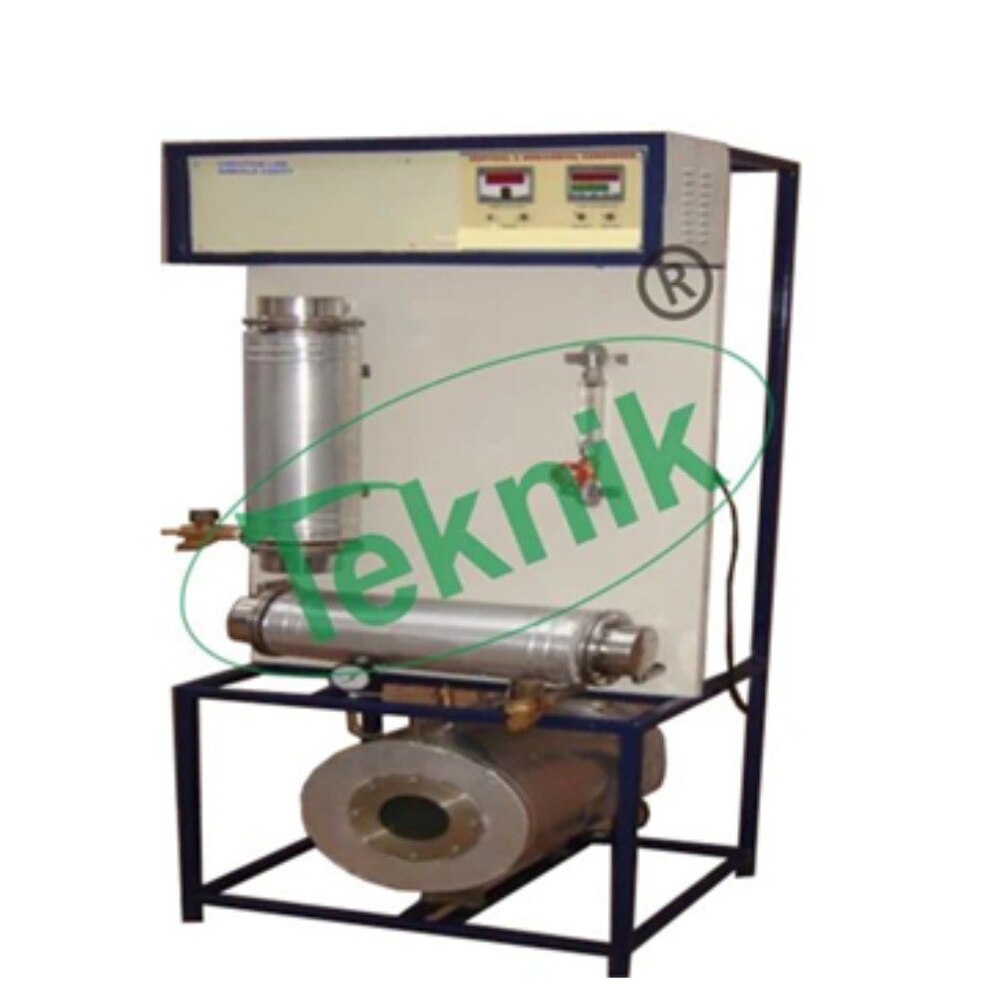

Vertical & Horizontal Condenser Apparatus - Application: Heat Transfer Lab Equipments

Vertical/ Horizontal Type Condenser is widely used to check thermal conductivity.
The Condenser is available in a sturdy construction that ensures optimum performance for longer period of time. The Condenser is made using quality grade material and offered in vertical as well as horizontal type construction. Vertical/ Horizontal Type Condenser can be availed in different specifications to suit individual requirement.
Shell & Tube Type Condensers Are Widely Used In Various Industries. The Present Set-Up Offers A Comparative Study Of Vertical & Horizontal Condenser, Which Can Be Operated One At A Time.
Condenser Consists Of Stainless Steel Shell, With Stainless Steel Tubes. Cold Fluid Flows Through Inside the Tubes and Steam Flows through the Shell. Valves Are Provided To Control The Flow Rates Of Cold Fluids. Flow Rate Of Cold Water Is Measured Using A Rota Meter. Shell Is Fitted With Steam Traps From Where Condensate Is Collected In Measuring Cylinder. Temperature Of Inlet And Outlet Of Both Hot & Cold Fluids Are Measured By Temperature Sensors.
Experimentation
To Determine the Overall Heat Transfer Co-Efficient and Film Co-Efficient For Vertical and Horizontal Condenser
Utilities Required:
Water Supply 20 Lit/Min (Approx.) and Drain
Electricity Supply: 1 Phase, 220 V Ac, 4 Kw
Floor Area of 15 M X 1m
Technical Details
System Steam to Water
Condensers 2 Nos (Vertical & Horizontal) Insulated By Ceramic Wool and Cladding by Aluminum Foil
Shell Material Stainless Steel Inner Dia 100 Mm, Length 500 Mm (Approx.)
Tubes Od 127mm, Length Of Tubes 500mm
Condensate Measurement Measuring Cylinder & Stopwatch
Water Flow Measurement: Rotameter
Steam Generator: Made Of Stainless Steel Fitted With Level Indicator, Pressure Gauge, Safety Valve, Drain and Insulated With Ceramic Wool & Cladding With Aluminum Foil
Heaters: Nichrome Wire Heater (2 Nos)
Key Features of Vertical Horizontal Type Condenser:
Check thermal conductivity.
Sturdy construction.
Optimum performance. Long lasting usage.
Made using quality grade material.
Offered in vertical as well as horizontal type construction.
