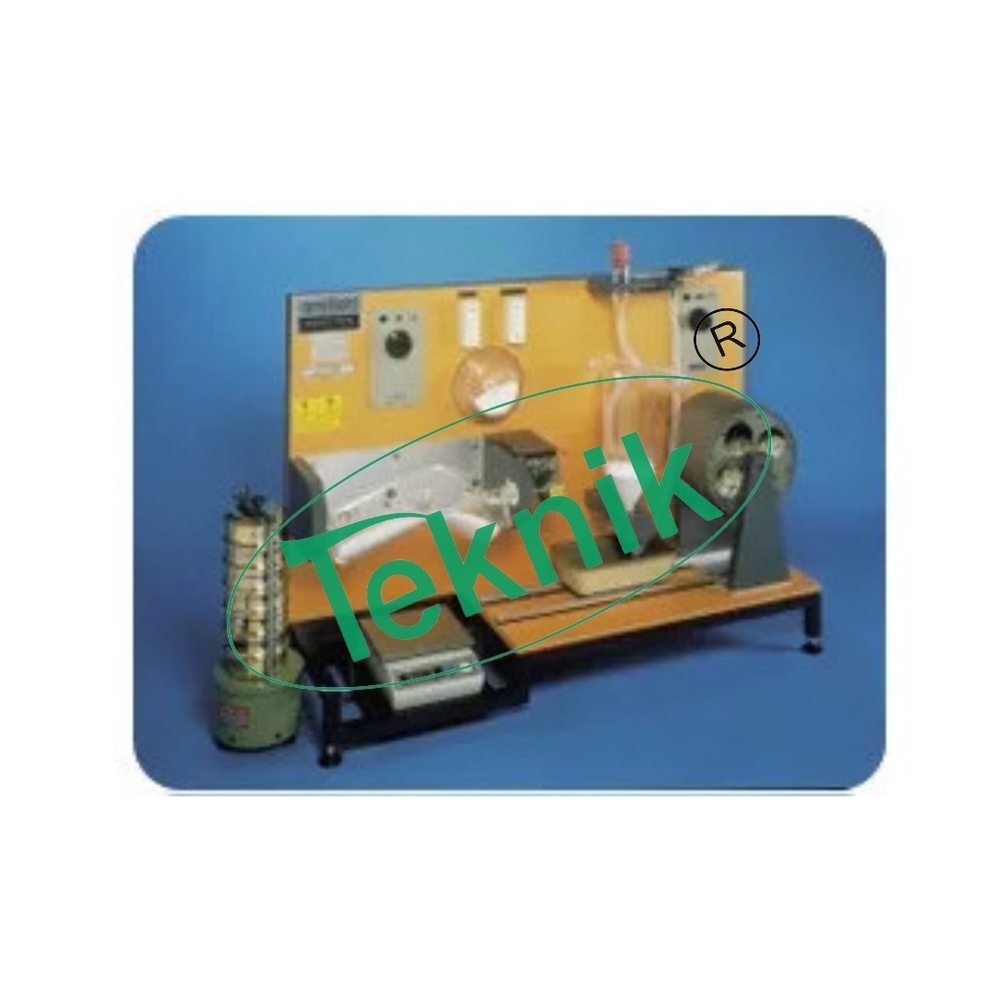

Solids Handling Study Bench
Solids Handling Study Bench/ Flow Properties of Bulk Solids
The flow and handling characteristics of granular materials are relevant to many process industries, particularly in the handling of powders, pellets, crystals and aggregates.
The Solids Handling Bench introduces students to the behavior of granular materials
Demonstration capabilities:
Comminution (size reduction by milling) and batch mixing using a ball mill
Batch mixing of granular material (powder to powder) using a V blender
Bulk density, particle density and porosity (void age) of different granular materials
Angle of repose of different granular materials and demonstration of stratification/segregation when mixed materials are poured (modeling avalanches). Effect of moisture content
Flow of granular materials through circular orifices and effect of moisture content
Pneumatic conveying of fine granular materials and cyclone separation
Analysis of size distribution, efficiency, loading etc. using a fixed amplitude vibratory shaker with 6 sieves
Shearing of the bulk solid sample by motor rotation of the shear cell
Vertical loading of the sample via ring-shaped lid with weights

Force sensor to measure the shear forces
Vernier caliper gauge to measure the change in height and density of the bulk sample
Software to record the sheer force characteristics via US Bunder Windows7
evaluation software to determine their Levant bulk solid parameters


Blender:

Speed Variable from 0 to 50 RPM
Total volume 1.2 liters
Working volume 0.35 liters
Ball Mill
Speed Variable from 0 to 50 RPM
Total volume 3.5 liters
Grinding medium Porcelain balls.
3.5 kg supplied
Hele-Shaw cell
Internal width 20mm
Construction Clear acrylic
Cylindrical hopper
Construction Pyrex glass
Inside diameter 99mm
Parallel height 258mm
Orifice diameters 5mm, 10mm,
15mm & 20mm
Vibratory shaker
Process timer 1 to 60 mins or continuous
Vibrations per min 3000 at 50Hz, 3600 at 60Hz
Sieves
Construction Brass frame with
Stainless steel mesh
Standards BS410-1 / ISO3310-1
Mesh sizes 0.25mm, 0.355mm, 0.5mm,
0.71mm, 1mm, 2mm
5 kg digital balance for weighing samples
230V / 1ph / 50Hz @ 0.5 Amps
Lxwxh: 500mm x 330mm 679mm
