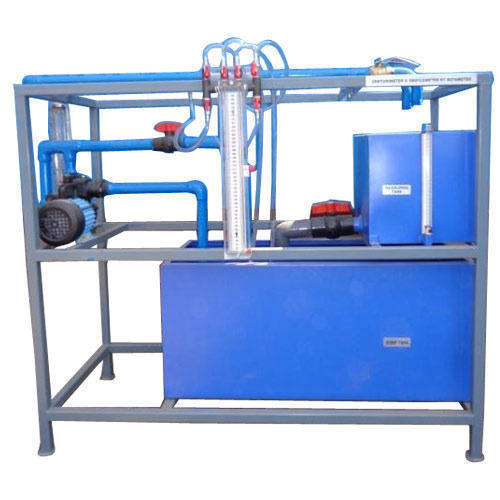

Vertical Venturimeter, Orificemeter & Rotameter Test Rig

Venturimeter: Material Clear Acrylic compatible to 1Dia. Pipe.
Orificemeter: Orifice plate made of Stainless Steel and housing made
of Clear Acrylic compatible to 1 Dia. Pipe.
Rota meter: Compatible Range. Eureka makes.
Water Circulation: FHP Pump, Crompton makes.
Flow Measurement: Using Measuring Tank (Capacity 25 ltrs.) and
Electronic Stop Watch.
Sump Tank: Capacity 50 Ltrs.
Control Panel Comprises of: Standard makes On/Off Switch, Mains
Indicator, etc.
Instruction Manual: An ENGLISH instruction manual will be provided
along With the Apparatus.
Tanks will be made of Stainless Steel.
The whole set-up is well designed and arranged in a good quality
painted .structure.
