Description:

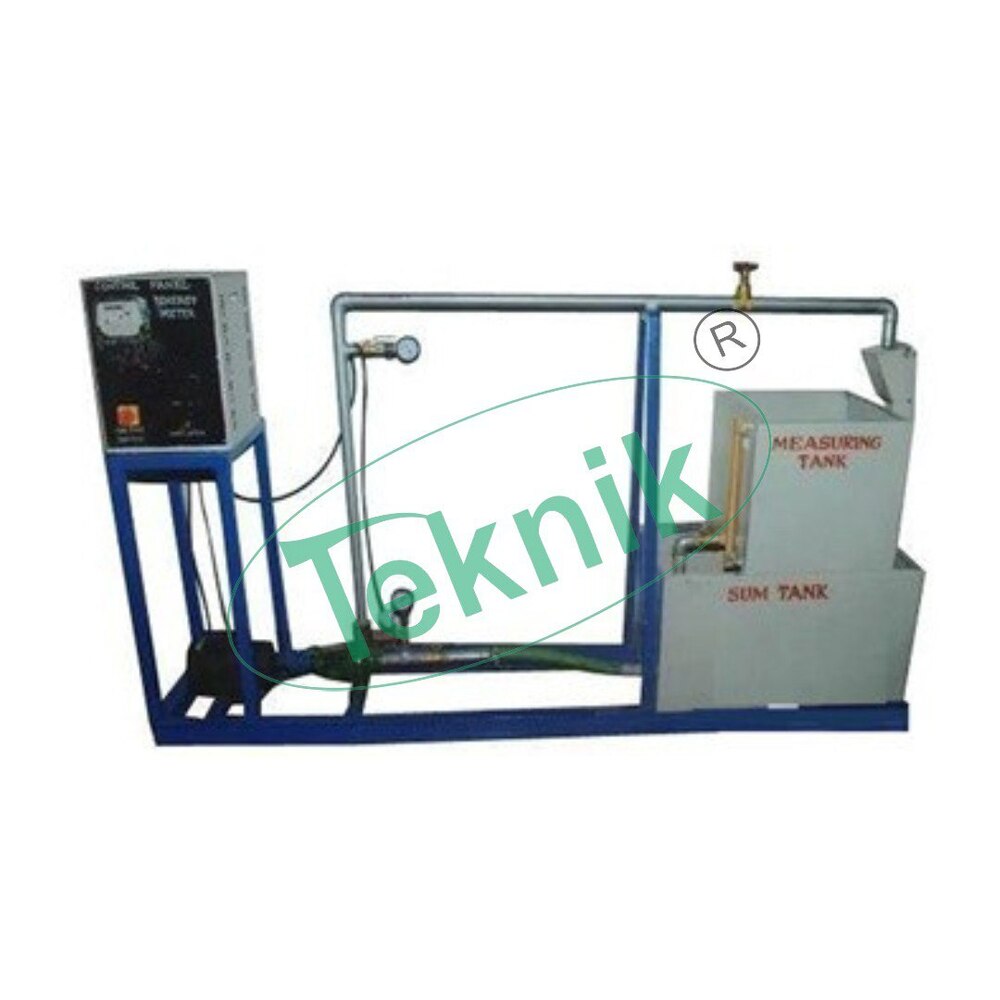

The present Centrifugal Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Centrifugal pump coupled with a DC Motor.
Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump.
Flow of water is measured by using measuring tank and stopwatch.
Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.
Experimentation:
To determine total head, Pump Output, overall efficiency and pump efficiency of the centrifugal pump.
To plot Head vs Discharge, Pump efficiency vs Discharge, Pump Output vs Discharge.
Utilities Required:
Water Supply.
Drain.
Electricity 1 kW, 220V AC, Single Phase.
Floor Area 2 x 1 m.
Technical Details:
Pump: Kirloskar Make, Capacity 1 HP
Speed 2800 RPM (max.), Head 12 m (max.)
Medium Flow: Clear Water
Drive: 1 HP DC Motor with Thyristor controlled DC drive for variable speed.
Sump Tank: Capacity 110 Ltrs.
Flow Measurement: Using Measuring Tank with Piezometer, Capacity 70 Ltrs.
Stop watch: Electronic.
Pressure Gauge: Bourdon type
Control Panel Comprises of:
RPM measurement: Digital RPM Indicator with Proximity sensor.
Energy measurement: L&T make, Electronic Energy meter.
Standard make On/Off Switch, Mains Indicator, etc.
